Line scan cameras

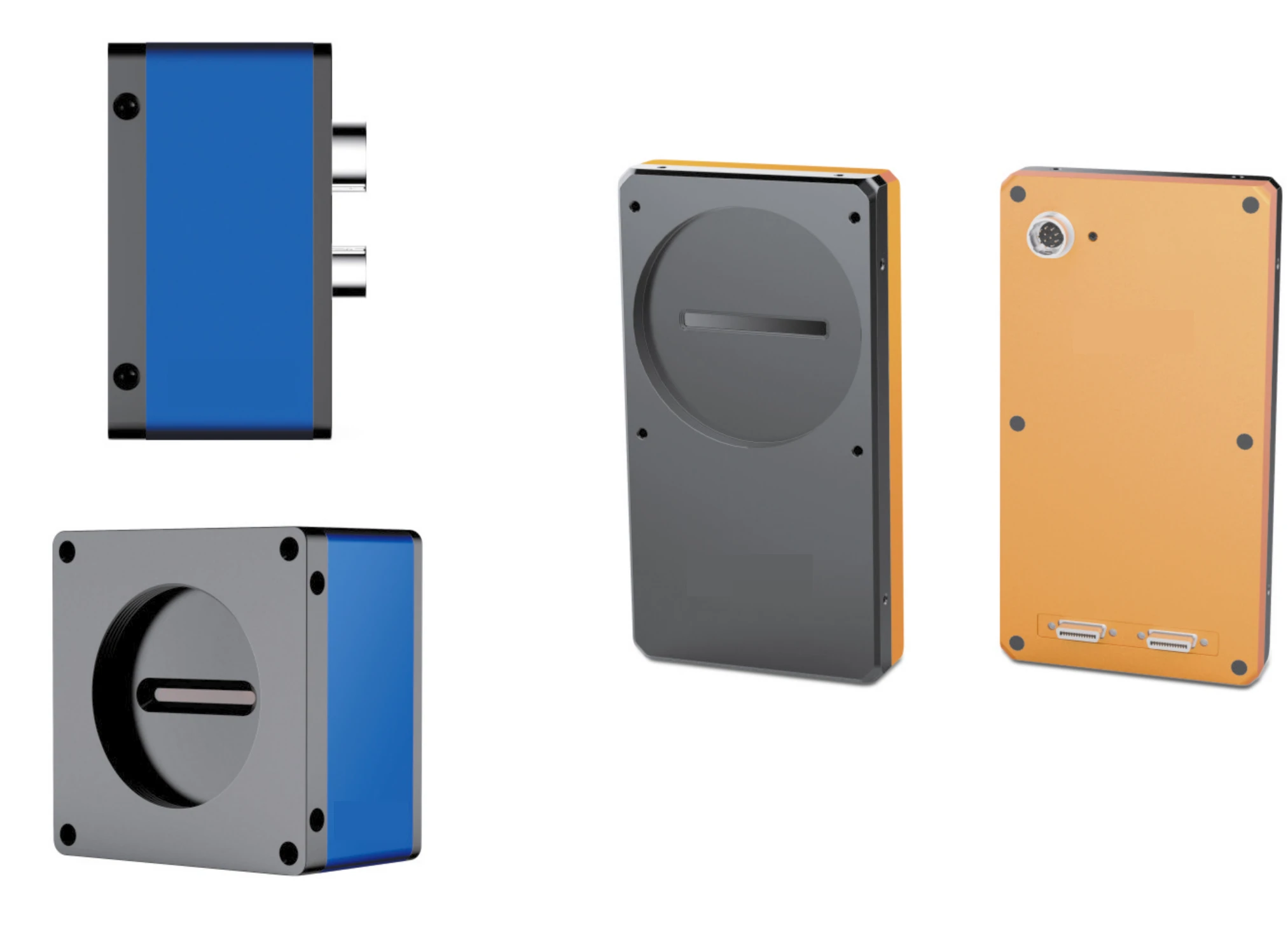

Line scan industrial camera, 2K, GigE, Mono (LS-C02K-49GM)
Model LS-C02K-49GM
Ultra-high performance, high-speed line scan cameras.
Features
- Ultra-high performance, high-speed line scan camera
- M42 or M72 lens mount (FBL 12), GigE or CameraLink
Specifications
| Model | LS-C02K-49GM |
|---|---|
| Sensor | CMOS |
| Resolution | 2048 x 1 |
| Line rate | 49K |
| Sensor size (mm) | 28.6 |
| Pixel size (um^2, as printed) | 14.14 |
| Lens mount | M42 (FBL 12) |
| Mono / colour | M |
| Interface | GigE |
| Camera size (mm) | 62 x 62 x 35 |
| Shipping weight | 0.59 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Line scan industrial camera series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-C02K-49GC | 2K, GigE, Colour | $1,099.00 | 3 in stock | View |
| LS-C04K-26GM | 4K, GigE, Mono | $1,349.00 | 4 in stock | View |
| LS-C04K-26GC | 4K, GigE, Colour | $1,349.00 | 3 in stock | View |
| LS-C08K-13GM | 8K, GigE, Mono | $1,899.00 | 4 in stock | View |
| LS-C08K-70CM | 8K, Camera Link, Mono | $2,009.00 | 5 in stock | View |
| LS-C08K-100CM | 8K, Camera Link, Mono | $2,009.00 | 5 in stock | View |
| LS-C08K-34CC | 8K, Camera Link, Colour | $2,009.00 | 4 in stock | View |
