Bar lights

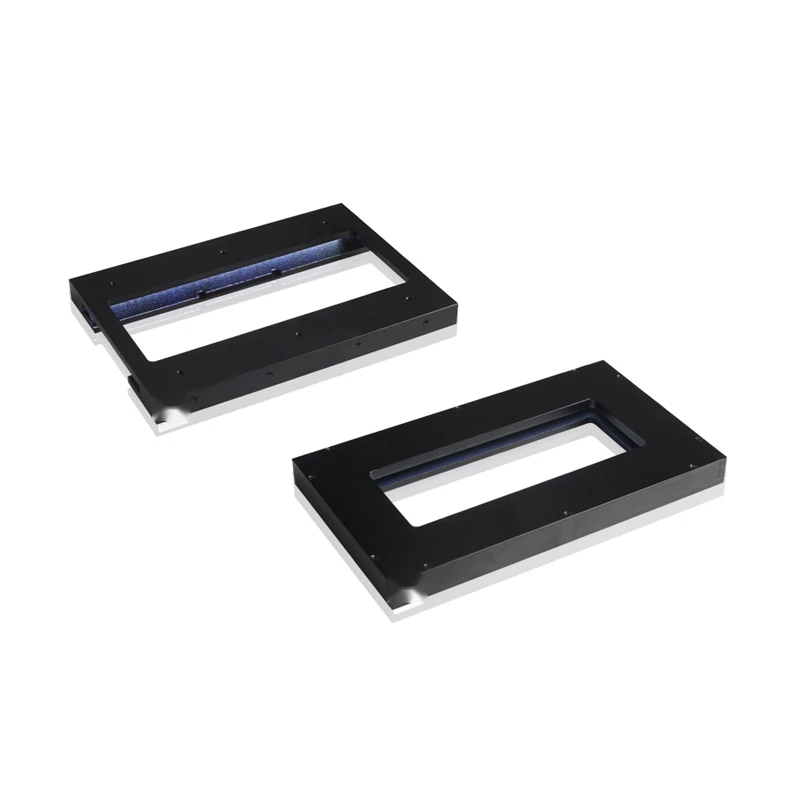

Pin inspection light (BRV) (LS-BRV12075-W2)
Model LS-BRV12075-W2
Pin inspection light use surface-mount LED, the light ray is thin, similar as laser light. Compact volumn, easy to install. Applicate in slender object inspection, such as Pin inspection.
Features
- Strong directivity, highlight the pin to have clearer contrast to background
- Matched with brighten Strobe Controller, used in high speed application
- Used in the small items, such as pin inspection
Specifications
| Model | LS-BRV12075-W2 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Voltage | 24V |
| Dimension | L120xW75xH13.5(mm) |
| Power | 2.9W/5.8W |
| Shipping weight | 0.35 kg |
Applications
- Pin location or measure
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Pin inspection light (BRV) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-BRV120110-W4 | $99.00 | 3 in stock | View | |
| LS-BRV150120-W2 | $119.00 | 4 in stock | View | |
| LS-BRV170120-W2 | $129.00 | 3 in stock | View | |
| LS-BRV190110-W4 | $139.00 | 3 in stock | View |
