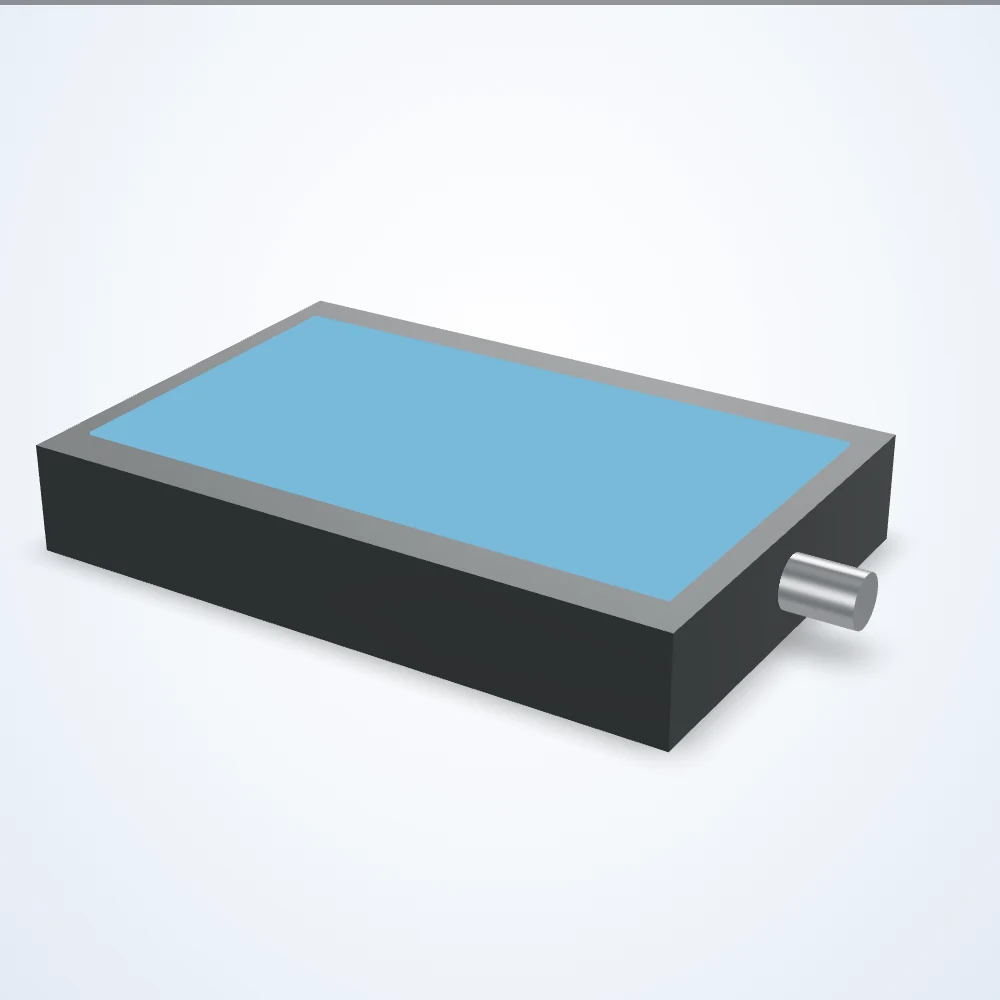

Rendered illustration: the actual product may differ in appearance.
Backlights
Backlight, 152.4 x 101.6 mm (LS-BKL-0580)
Model LS-BKL-0580
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. 24 V DC supply; connection: m12 quick-disconnect.
Specifications
| Model | LS-BKL-0580 |
|---|---|
| Colour | Blue (470nm) |
| Length (mm) | 152.4 |
| Width (mm) | 101.6 |
| Voltage | 24 V DC |
| Connector | M12 quick-disconnect |
| Driver | External |
| Nominal size | 4 x 6 in |
| Options | Diffuser and cable types on request |
| Supply voltage (derived) | 24 V DC, derived: all 550 backlights of this range that state a voltage are rated 24 V |
