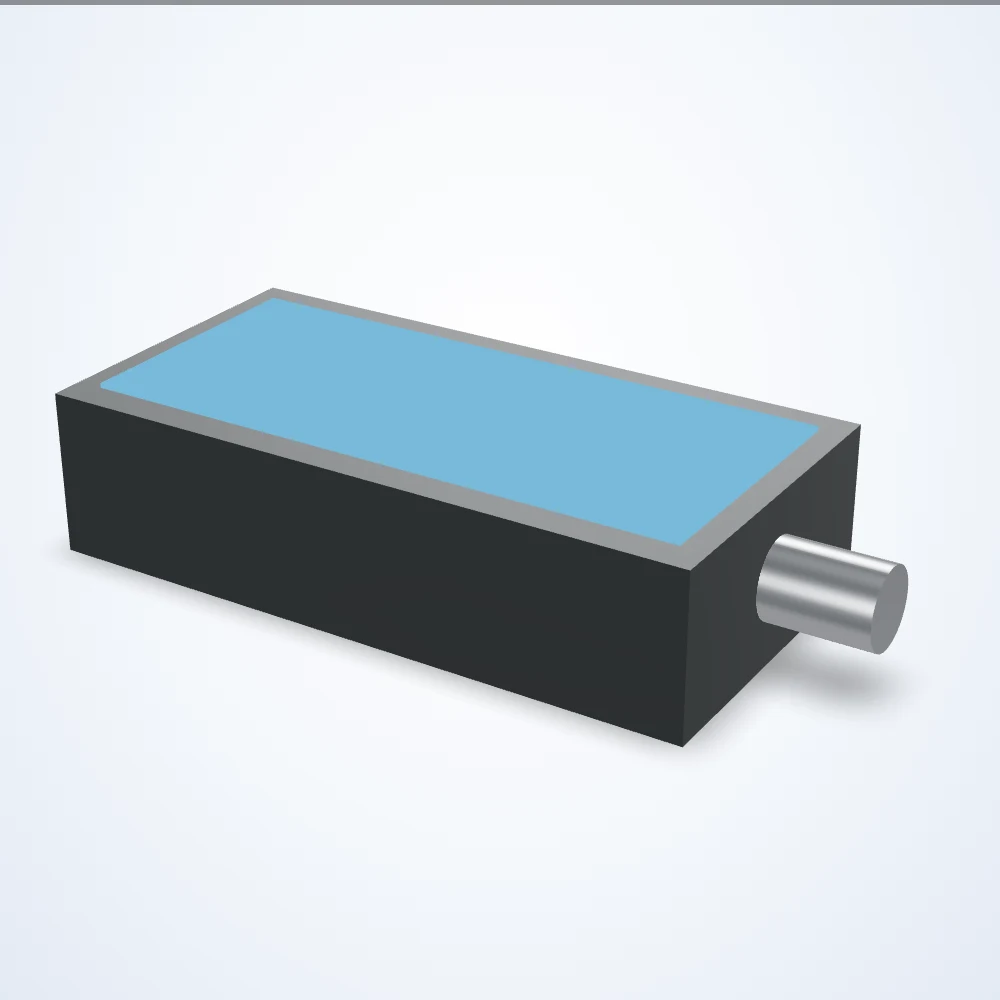

Rendered illustration: the actual product may differ in appearance.
Backlights
Backlight, 101.6 x 50.8 mm (LS-BKL-0535)
Model LS-BKL-0535
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. 24 V DC supply; connection: m12 quick-disconnect.
Specifications
| Model | LS-BKL-0535 |
|---|---|
| Colour | Blue (470nm) |
| Length (mm) | 101.6 |
| Width (mm) | 50.8 |
| Voltage | 24 V DC |
| Connector | M12 quick-disconnect |
| Driver | Internal |
| Nominal size | 2 x 4 in |
| Options | Diffuser and cable types on request |
| Strobe | Built-in high-speed strobe |
| Supply voltage (derived) | 24 V DC, derived: all 550 backlights of this range that state a voltage are rated 24 V |
