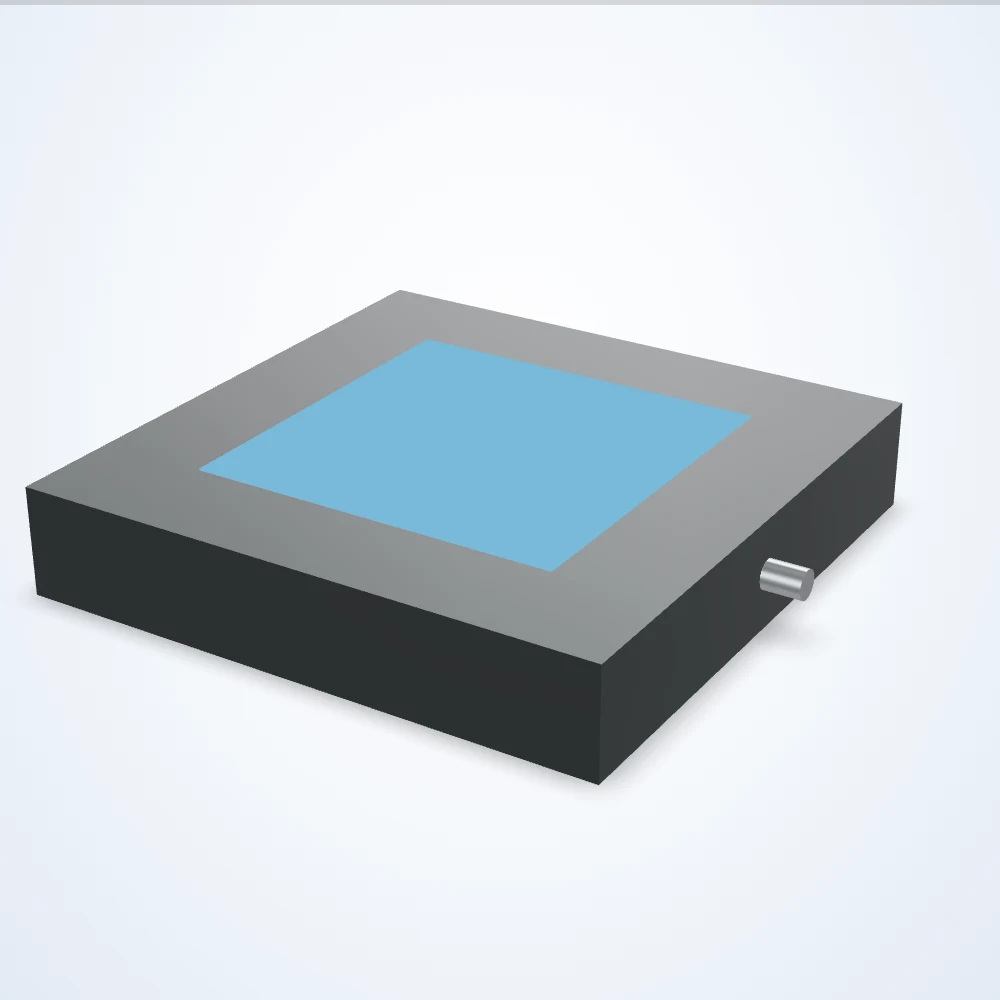

Backlight, 153 x 153 mm lit area (LS-BKL-0514)
Model LS-BKL-0514
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 153 x 153 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (6 configurations) and request a quote.
Specifications
| Model | LS-BKL-0514 |
|---|---|
| Lens / beam angle | Diffused |
| Lit length (mm) | 153 |
| Lit width (mm) | 153 |
| Length (mm) | 243 |
| Width (mm) | 243 |
| Height (mm) | 45 |
| Voltage | 24 VDC |
| Connector | 5 Pin M12 Male A-Coded |
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Operating temperature | -18 to 40 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Diffused |
| Direct connect | No |
| Driver nomenclature | SVL OverDrive Driver |
| Max overcurrent strobe current | 13000 mA |
| Max overcurrent strobe input power | 312 W |
| Maximum current (overcurrent strobe) (ma) | 13000 |
| Maximum duty cycle (%) | 10 |
| Maximum input power overcurrent strobe (w) | 312 |
| Maximum overcurrent strobe duration (ms) | 125 |
| Maximum overcurrent strobe duty cycle (%) | 10 |
| Maximum overcurrent strobe frequency (hz) | 5000 |
| Maximum overcurrent strobe latency (us) | 6 |
| Minimum overcurrent strobe duration (us) | 30 |
| NPN trigger current (ma) | 15 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 20 |
| PNP trigger voltage (v) | 4-24 VDC |
| Polarized | Not Polarized |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
