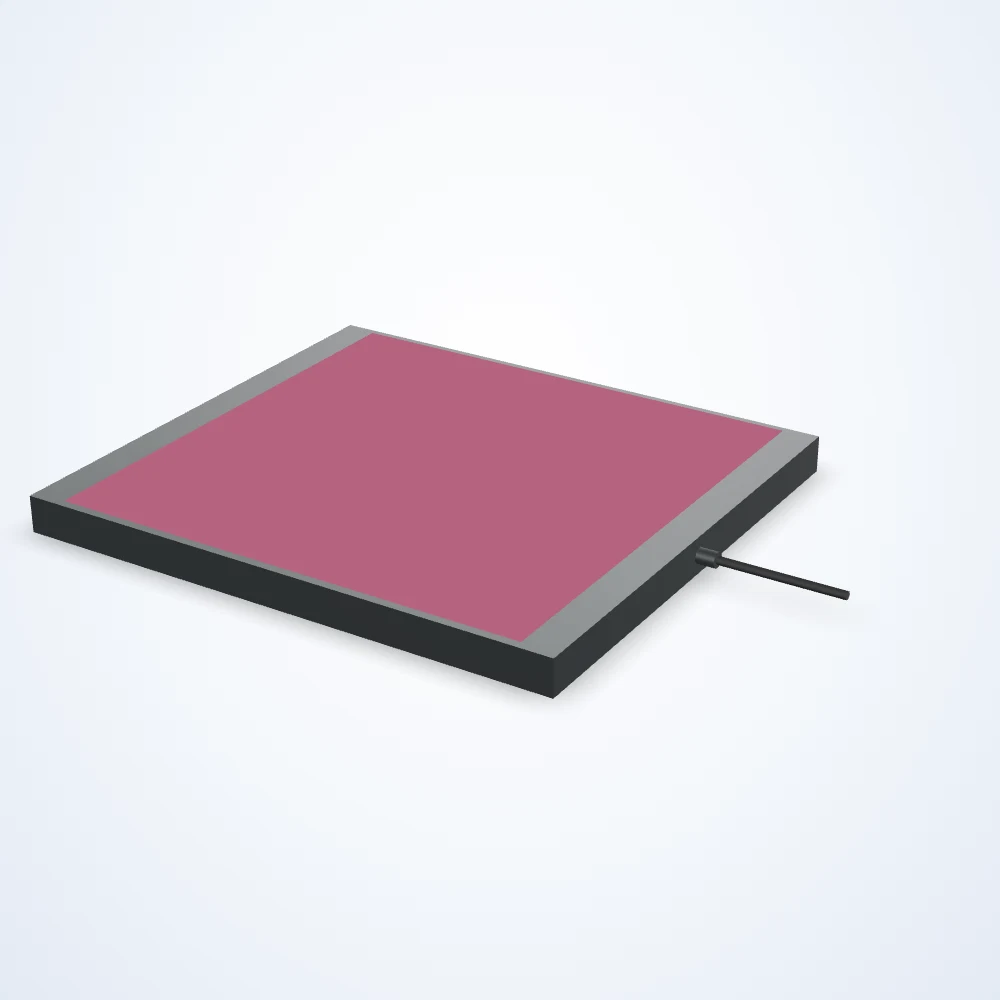

Backlight, 314.2 x 314.2 mm lit area (LS-BKL-0503)
Model LS-BKL-0503
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 314.2 x 314.2 mm; 24 VDC supply; connection: flying leads.
Specifications
| Model | LS-BKL-0503 |
|---|---|
| Colour | 850nm Infrared |
| Lit length (mm) | 314.2 |
| Lit width (mm) | 314.2 |
| Length (mm) | 360.2 |
| Width (mm) | 325.4 |
| Height (mm) | 24 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | No Driver Required |
| Driver location | No Driver |
| Operating modes | Constant On |
| Strobe trigger input | Constant On Only |
| Operating temperature | up to 60 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V |
| Maximum constant on current (ma) | 2724 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 65.4 |
| Polarized | Not Polarized |
| Wavelength | 850nm Infrared |
| Compliance | CE |
