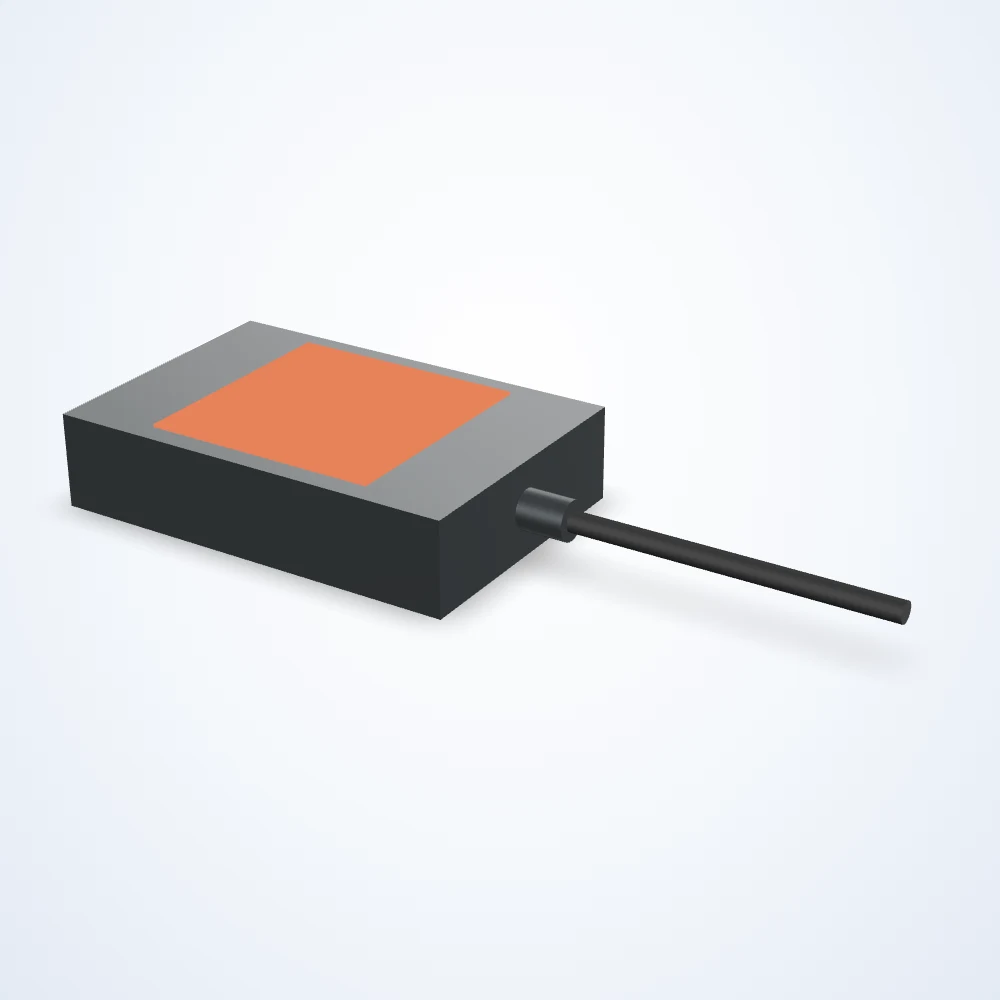

Backlight, 60.2 x 60.2 mm lit area, 625nm Red, driver included, strobe trigger input PNP Trigger (LS-BKL-0357)

Model LS-BKL-0357

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 60.2 x 60.2 mm; 24 VDC supply; connection: flying leads.

Datasheet (PDF) - LS-BKL-0357

Specifications

Model	LS-BKL-0357
Colour	625nm Red
Lit length (mm)	60.2
Lit width (mm)	60.2
Length (mm)	106.2
Width (mm)	71.4
Height (mm)	24
Voltage	24 VDC
Connector	Flying Leads
Connection at light	Hardwired
Cable length (mm)	2000
Driver included	Included
Driver location	In Line
Intensity control	Analog Voltage
Operating modes	Constant On
Strobe trigger input	PNP Trigger
Operating temperature	up to 60 °C
Housing	Aluminum
Mounting	T-Slot Channel
Collimated	Not Collimated
Daisy chain	No
Diffused	Not Diffused
Direct connect	No
Max overcurrent strobe current	8000 mA
Max overcurrent strobe input power	125 W
Maximum constant on current (ma)	352
Maximum current (overcurrent strobe) (ma)	8000
Maximum duty cycle (%)	100
Maximum input power constant on (w)	8.5
Maximum input power overcurrent strobe (w)	125
Maximum overcurrent strobe frequency (hz)	2000
Maximum overcurrent strobe latency (us)	60
Minimum overcurrent strobe duration (us)	30
NPN trigger voltage (v)	< 1 VDC
PNP trigger current (ma)	5
PNP trigger voltage (v)	2.5-30 VDC
Polarized	Not Polarized
Wavelength	625nm Red
Compliance	CE
