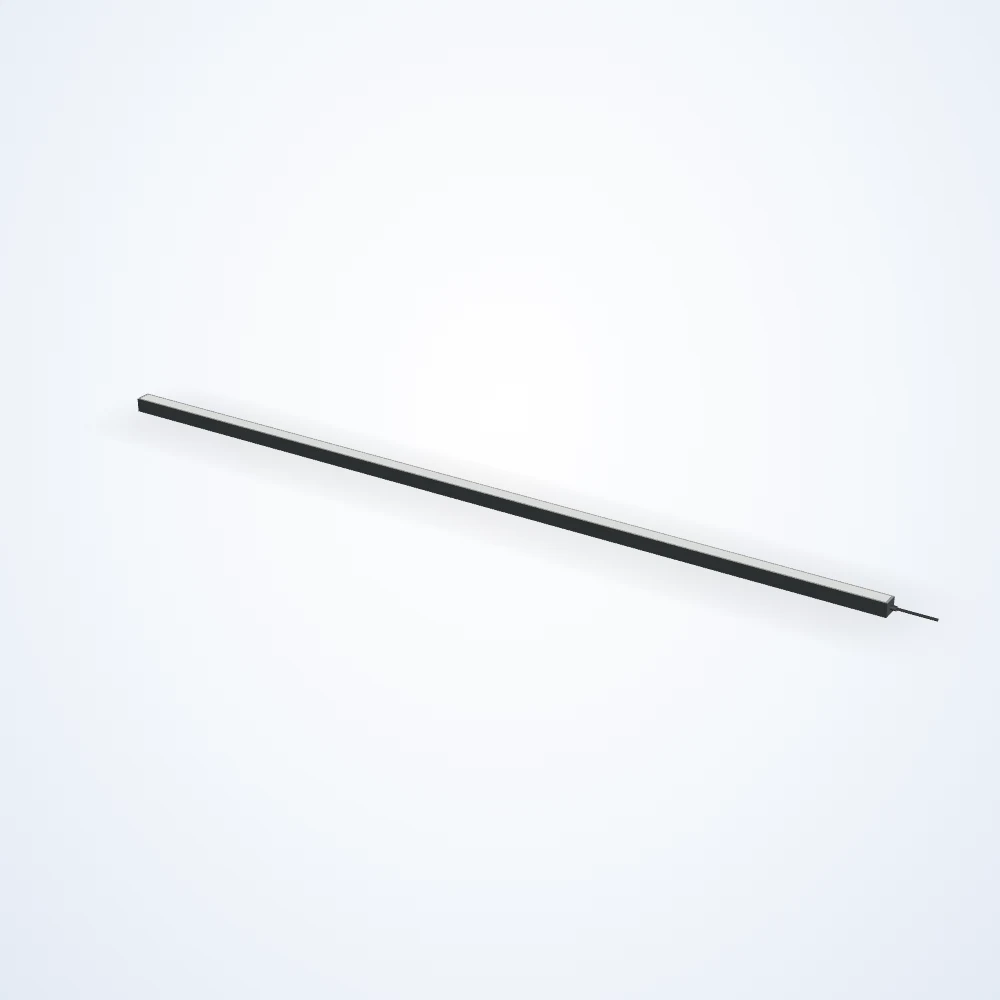

Rendered illustration: the actual product may differ in appearance.
Backlights
Backlight, 1764 x 25.4 mm lit area (LS-BKL-0333)
Model LS-BKL-0333
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1764 x 25.4 mm; 24 VDC supply; connection: flying leads.
Specifications
| Model | LS-BKL-0333 |
|---|---|
| Colour | WHITE |
| Lit length (mm) | 1764 |
| Lit width (mm) | 25.4 |
| Length (mm) | 1774 |
| Width (mm) | 33.8 |
| Height (mm) | 30 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Driver included | No Driver Required |
| Driver location | No Driver |
| Operating modes | Constant On |
| Strobe trigger input | Constant On Only |
| Operating temperature | up to 60 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V |
| Maximum constant on current (ma) | 1397 |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 33.5 |
| Polarized | Not Polarized |
| Wavelength | WHITE |
| Compliance | CE |
