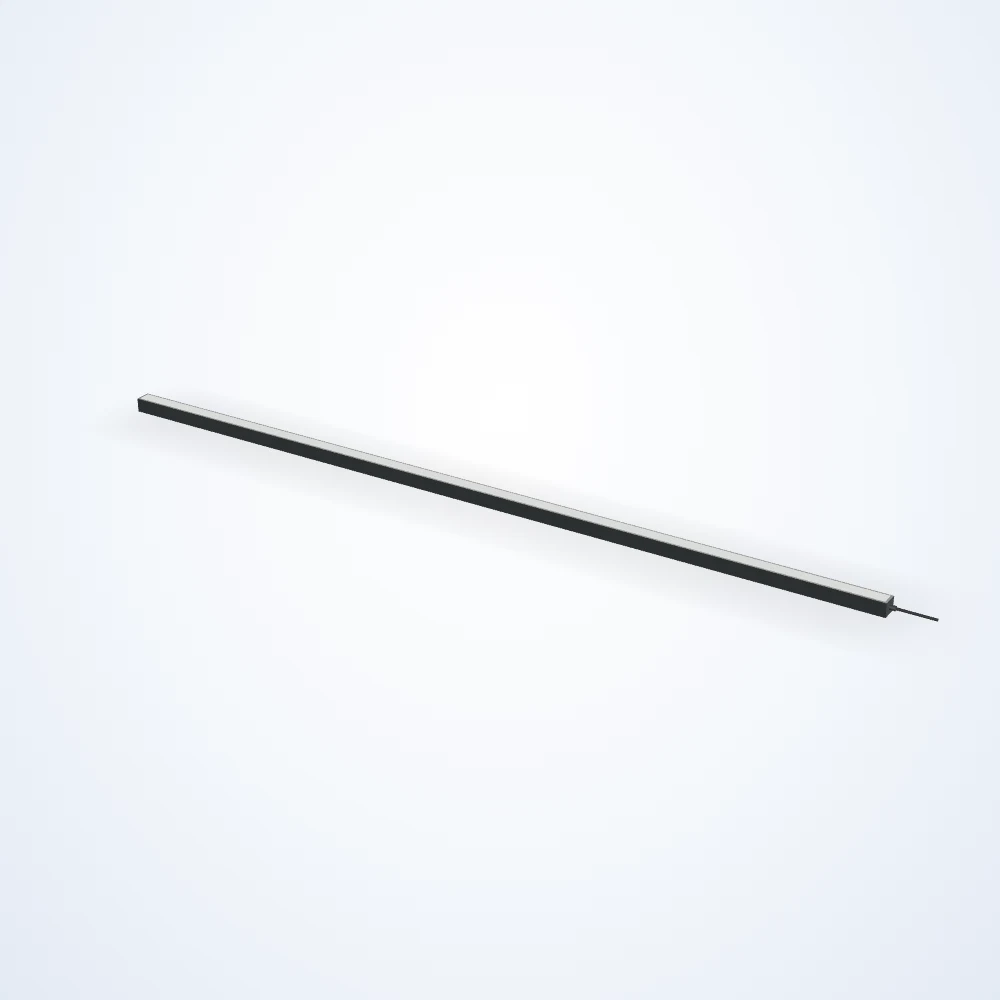

Rendered illustration: the actual product may differ in appearance.
Backlights
1749.04 x 33.8 mm backlight (LS-BKL-0331)
Model LS-BKL-0331
1749.04 x 33.8 mm backlight. Colour: WHITE. Lit area 1738.88 x 25.4 mm. Connection: Flying Leads.
Specifications
| Model | LS-BKL-0331 |
|---|---|
| Active Length (mm) | 1738.88 |
| Active Width (mm) | 25.4 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Color | WHITE |
| Compliances | CE |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | No Driver Required |
| Driver Location | No Driver |
| Driver Nomenclature | 24V |
| Height (mm) | 30 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Length (mm) | 1749.04 |
| Maximum Constant On Current (mA) | 1377 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 33.1 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | T-Slot Channel |
| Operation Modes | Constant On |
| Polarized | Not Polarized |
| Product Weight (Kg) | 1.86 |
| Product Weight (Lbs) | 4.1 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 33.8 |
