Home / Lighting / Backlights / Backlight series, 30 mm high, Flying Leads
Backlight, 1510 x 25.4 mm lit area, compliance CE (LS-BKL-0317)

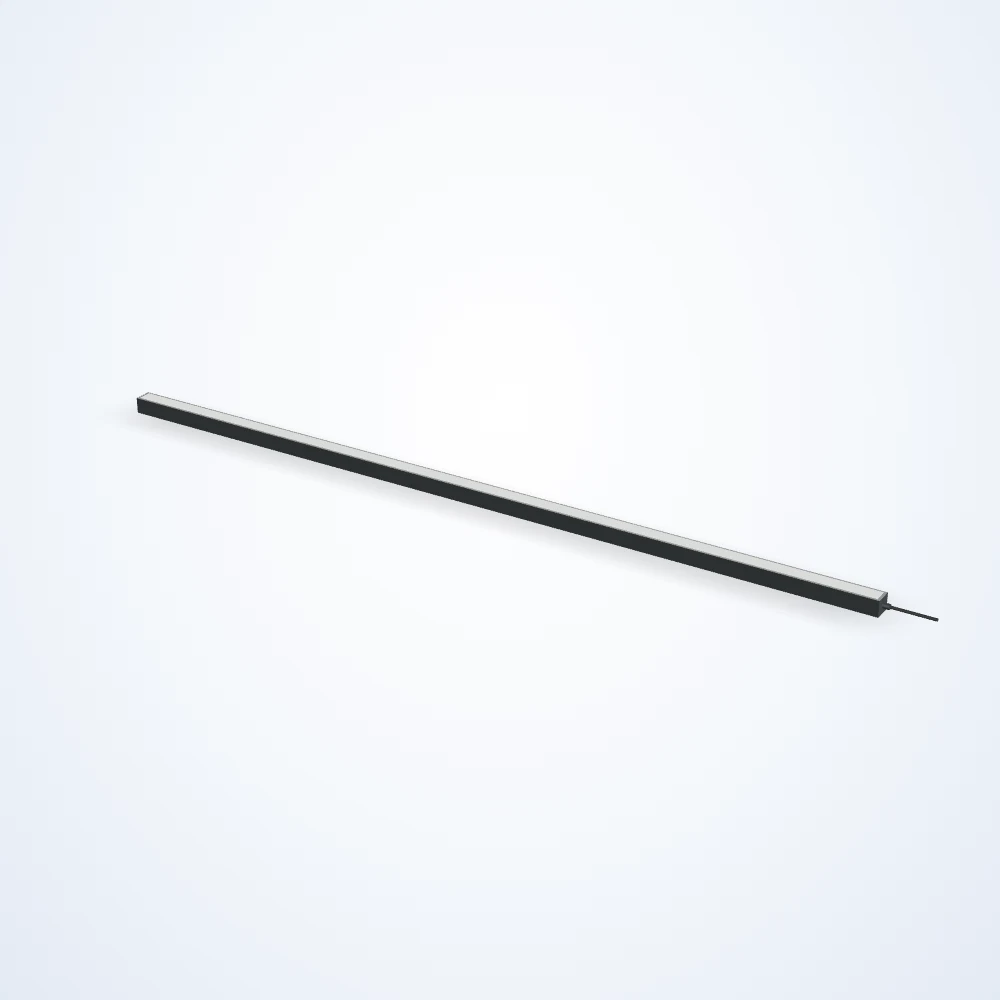

Rendered illustration: the actual product may differ in appearance.

Backlights

Backlight, 1510 x 25.4 mm lit area, compliance CE (LS-BKL-0317)

Model LS-BKL-0317

LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1510 x 25.4 mm; 24 VDC supply; connection: flying leads.

Price on request
Built to order: ships in about 4-5 weeks

Build a system with this light → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-BKL-0317

Specifications

ModelLS-BKL-0317
ColourWHITE
Lit length (mm)1510
Lit width (mm)25.4
Length (mm)1520
Width (mm)33.8
Height (mm)30
Voltage24 VDC
ConnectorFlying Leads
Connection at lightHardwired
Cable length (mm)2000
Driver includedNo Driver Required
Driver locationNo Driver
Operating modesConstant On
Strobe trigger inputConstant On Only
Operating temperatureup to 60 °C
IP ratingIP50
HousingAluminum
MountingT-Slot Channel
CollimatedNot Collimated
Daisy chainNo
DiffusedNot Diffused
Direct connectNo
Maximum constant on current (ma)1197
Maximum duty cycle (%)100
Maximum input power constant on (w)28.7
PolarizedNot Polarized
WavelengthWHITE
ComplianceCE
