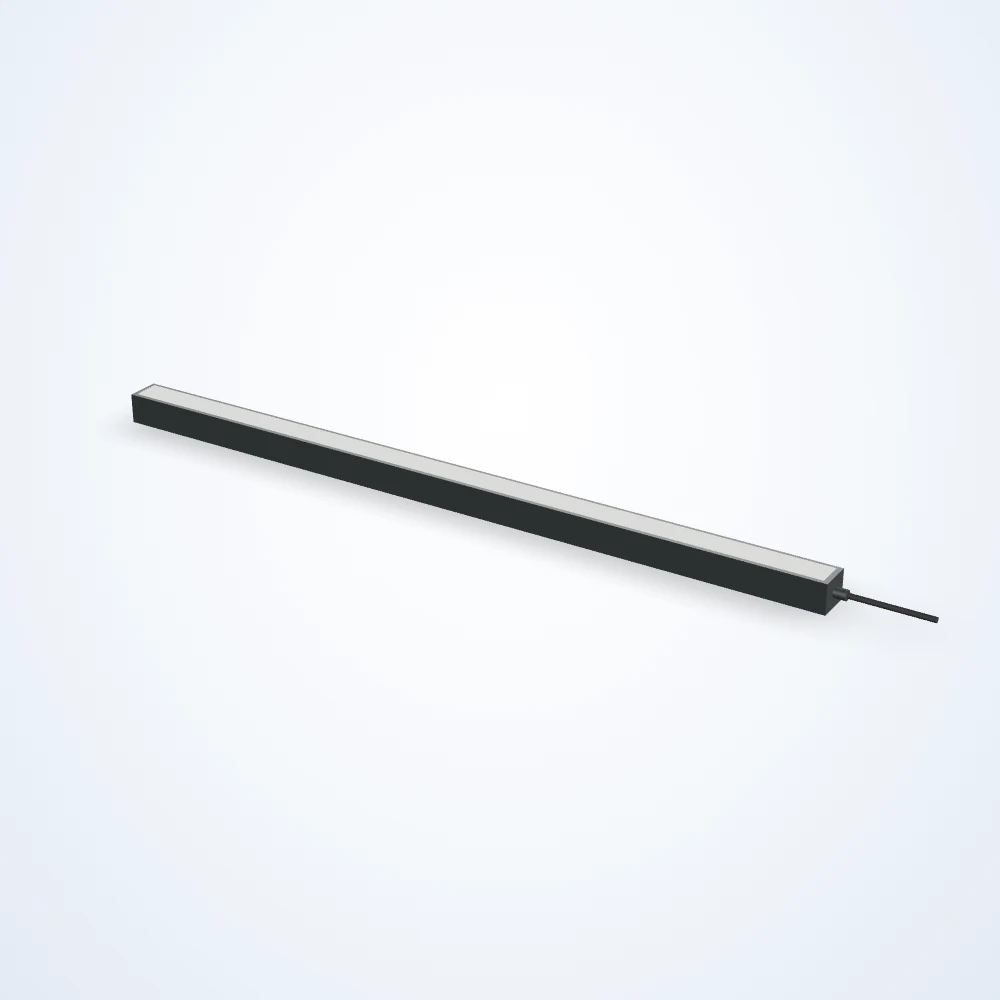

Rendered illustration: the actual product may differ in appearance.
Backlights
758.44 x 33.8 mm backlight (LS-BKL-0259)
Model LS-BKL-0259
758.44 x 33.8 mm backlight. Colour: WHITE. Lit area 748.28 x 25.4 mm. Connection: Flying Leads.
Specifications
| Model | LS-BKL-0259 |
|---|---|
| Active Length (mm) | 748.28 |
| Active Width (mm) | 25.4 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Color | WHITE |
| Compliances | CE |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | In Line |
| Height (mm) | 30 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 758.44 |
| Maximum Constant On Current (mA) | 895 |
| Maximum Current (Overcurrent Strobe) (mA) | 8000 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 21.5 |
| Maximum Input Power Overcurrent Strobe (W) | 125 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Maximum Overcurrent Strobe Frequency (Hz) | 2000 |
| Maximum Overcurrent Strobe Latency (us) | 60 |
| Minimum Operating Temperature (F) | 32 |
| Minimum Overcurrent Strobe Duration (us) | 30 |
| Mounting Method | T-Slot Channel |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On |
| PNP Trigger Current (mA) | 5 |
| PNP Trigger Voltage (V) | 2.5-30 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.88 |
| Product Weight (Lbs) | 1.95 |
| Strobe Trigger Input | PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 33.8 |
