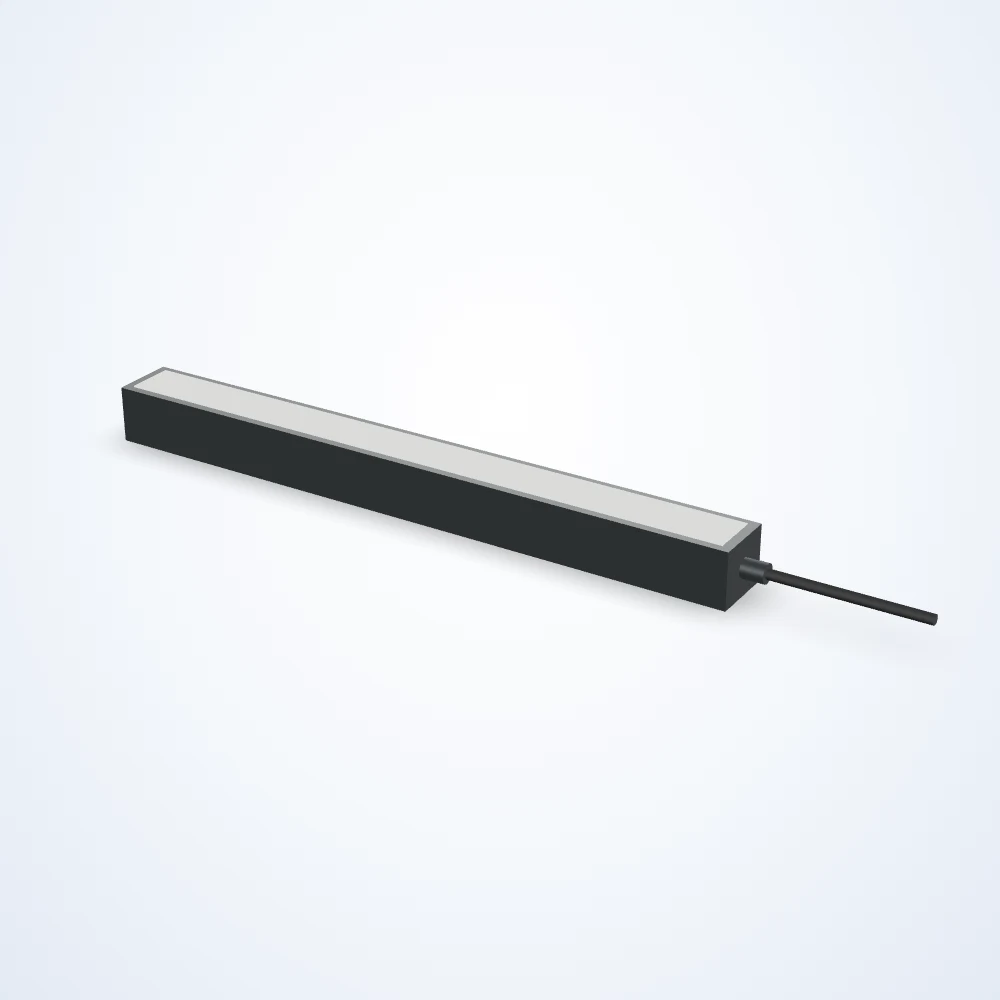

Rendered illustration: the actual product may differ in appearance.
Backlights
352.04 x 33.8 mm backlight (LS-BKL-0196)
Model LS-BKL-0196
352.04 x 33.8 mm backlight. Colour: WHITE. Lit area 341.88 x 25.4 mm. Connection: Flying Leads.
Specifications
| Model | LS-BKL-0196 |
|---|---|
| Active Length (mm) | 341.88 |
| Active Width (mm) | 25.4 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Color | WHITE |
| Compliances | CE |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | In Line |
| Driver Nomenclature | iCS2 - IC |
| Height (mm) | 30 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 352.04 |
| Maximum Constant On Current (mA) | 415 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 10 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | T-Slot Channel |
| Operation Modes | Constant On |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.48 |
| Product Weight (Lbs) | 1.06 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 33.8 |
