Rendered illustration: the actual product may differ in appearance.
Backlights

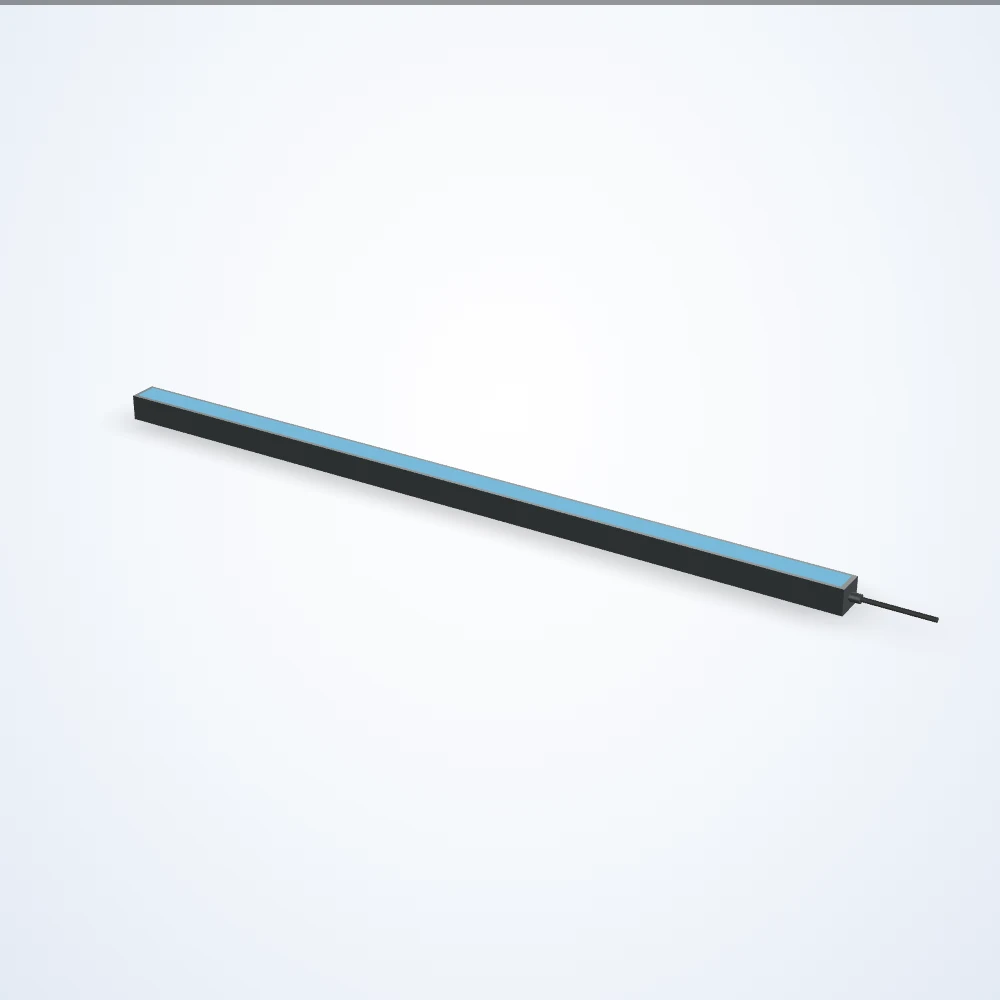

910.84 x 33.8 mm backlight (LS-BKL-0083)
Model LS-BKL-0083
910.84 x 33.8 mm backlight. Lit area 900.68 x 25.4 mm. Connection: Flying Leads. Available in 16 configurations (color, driver included, driver location, driver nomenclature); choose one below and request a quote.
Specifications
| Model | LS-BKL-0083 |
|---|---|
| Active Length (mm) | 900.68 |
| Active Width (mm) | 25.4 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Height (mm) | 30 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Length (mm) | 910.84 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | T-Slot Channel |
| Polarized | Not Polarized |
| Product Weight (Kg) | 1.03 |
| Product Weight (Lbs) | 2.28 |
| Voltage | 24 VDC |
| Width (mm) | 33.8 |
