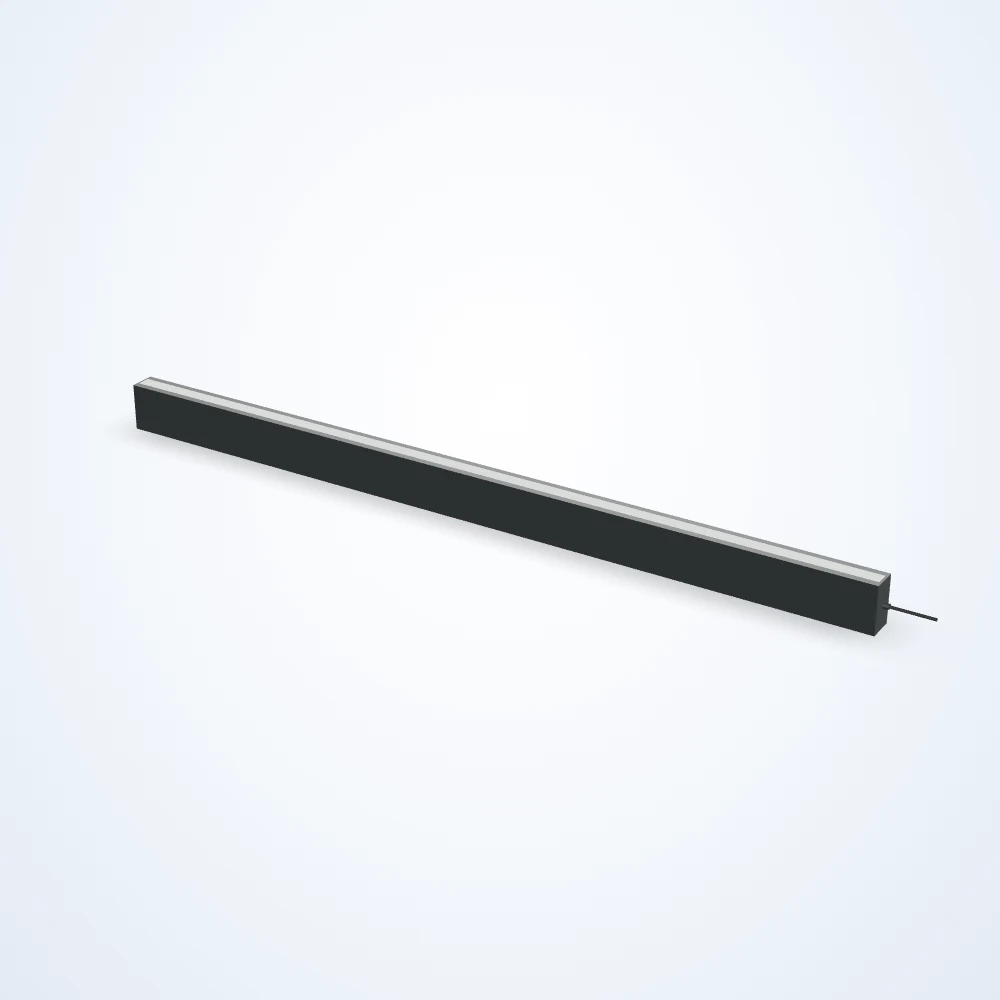

Rendered illustration: the actual product may differ in appearance.
Backlights
1530.6 x 50.2 mm backlight (LS-BKL-0042)
Model LS-BKL-0042
1530.6 x 50.2 mm backlight. Colour: WHITE. Lit area 1521.97 x 24.6 mm. Connection: Flying Leads. Available in 2 configurations (driver included, driver location, driver nomenclature, intensity adjustment type); choose one below and request a quote.
Specifications
| Model | LS-BKL-0042 |
|---|---|
| Active Length (mm) | 1521.97 |
| Active Width (mm) | 24.6 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Color | WHITE |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Height (mm) | 90.7 |
| Housing Material | Aluminum |
| Length (mm) | 1530.6 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | T-Slot Channel |
| Polarized | Not Polarized |
| Product Weight (Kg) | 5.92 |
| Product Weight (Lbs) | 13.07 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 50.2 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
