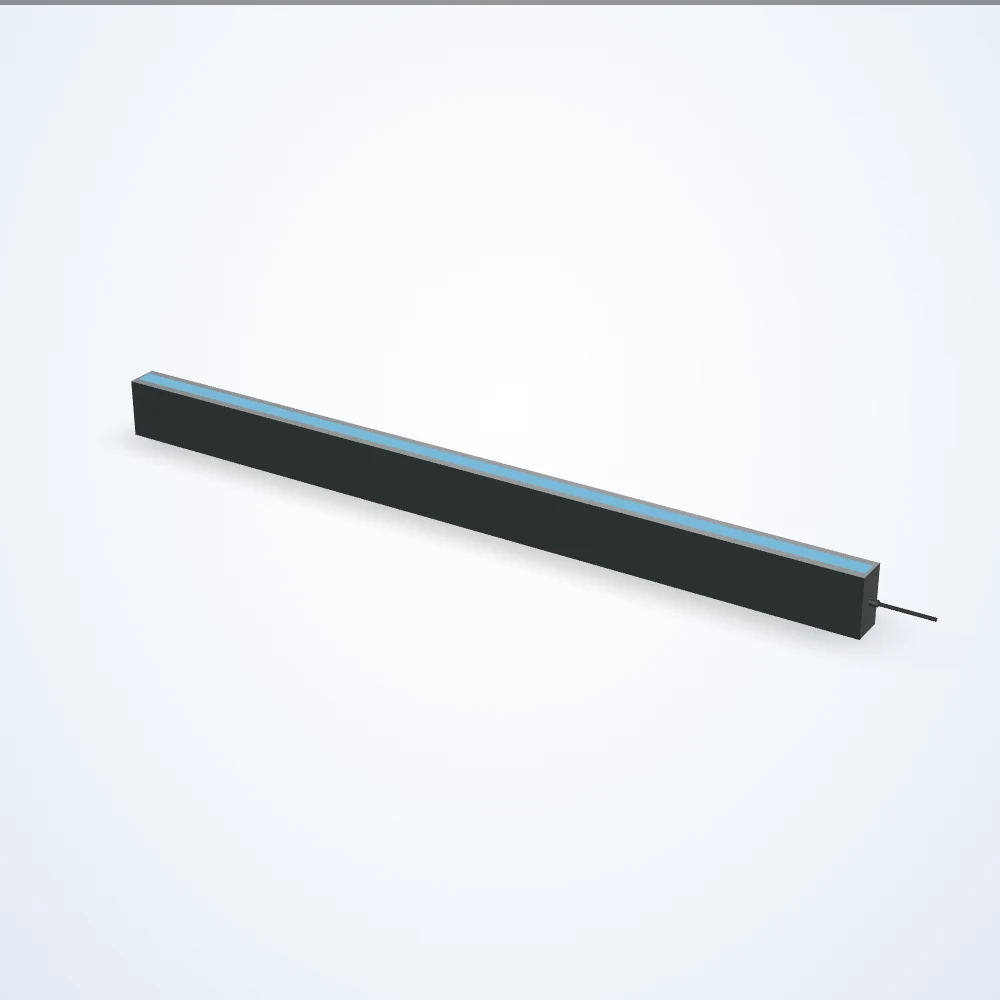

Rendered illustration: the actual product may differ in appearance.
Backlights
Backlight, 1218 x 24.6 mm lit area (LS-BKL-0023)
Model LS-BKL-0023
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 1218 x 24.6 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (10 configurations) and request a quote.
Specifications
| Model | LS-BKL-0023 |
|---|---|
| Lit length (mm) | 1218 |
| Lit width (mm) | 24.6 |
| Length (mm) | 1226 |
| Width (mm) | 50.2 |
| Height (mm) | 90.7 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Hardwired |
| Cable length (mm) | 2000 |
| Strobe trigger input | Constant On Only |
| Operating temperature | up to 60 °C |
| IP rating | IP50 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Not Diffused |
| Direct connect | No |
| Driver nomenclature | 24V / iCS2 - IC (by configuration) |
| Maximum constant on current (ma) | 6032 / 8043 (by configuration) |
| Maximum duty cycle (%) | 100 |
| Maximum input power constant on (w) | 144.8 / 193 (by configuration) |
| Polarized | Not Polarized |
| Compliance | CE, IEC 62471, RoHS |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
