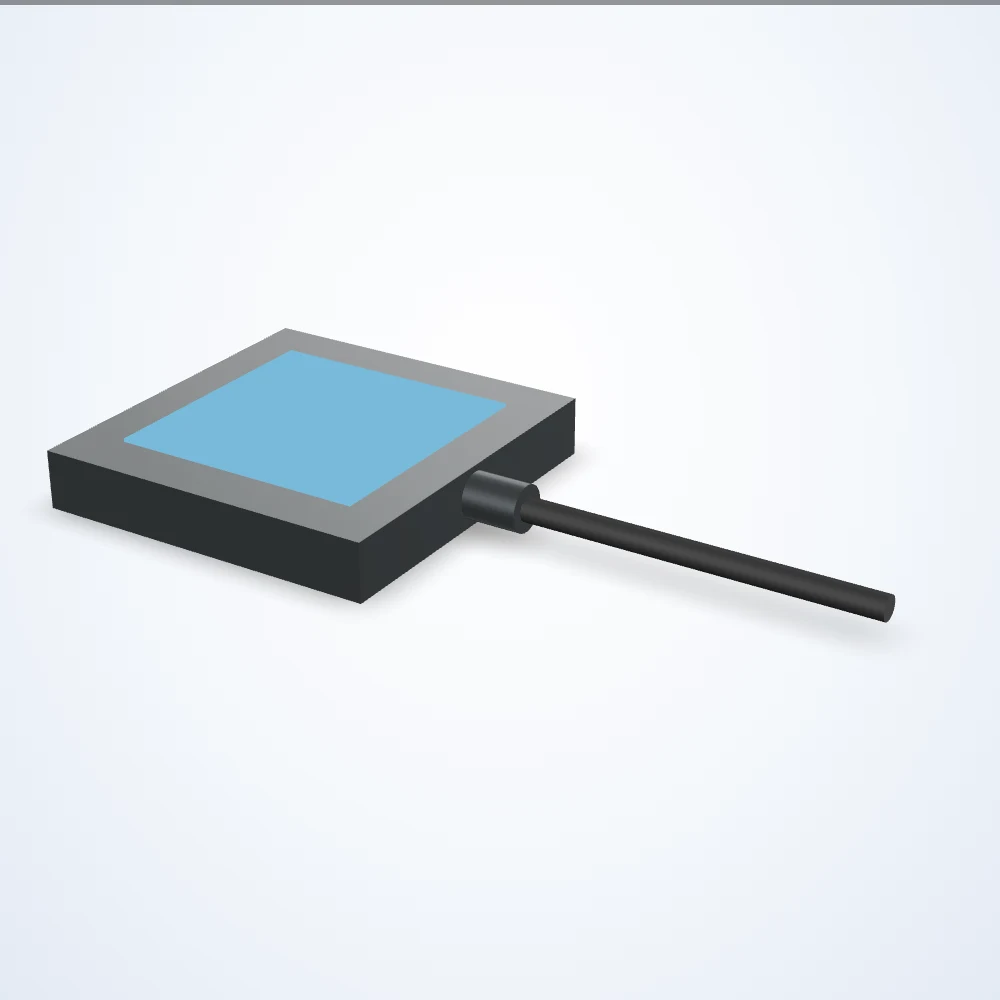

Rendered illustration: the actual product may differ in appearance.
Backlights
75.9 x 78.3 mm backlight (LS-BKL-0002)
Model LS-BKL-0002
75.9 x 78.3 mm backlight. Lit area 55.6 x 55.6 mm. Connection: Flying Leads. Available in 15 configurations (color, driver nomenclature, maximum current (overcurrent strobe) (ma), maximum input power overcurrent strobe (w)); choose one below and request a quote.
Specifications
| Model | LS-BKL-0002 |
|---|---|
| Active Length (mm) | 55.6 |
| Active Width (mm) | 55.6 |
| Cable Length (mm) | 2000 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | In Line |
| Height (mm) | 12.7 |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 75.9 |
| Maximum Constant On Current (mA) | 239 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 5.7 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.23 |
| Product Weight (Lbs) | 0.5 |
| Voltage | 24 VDC |
| Width (mm) | 78.3 |
