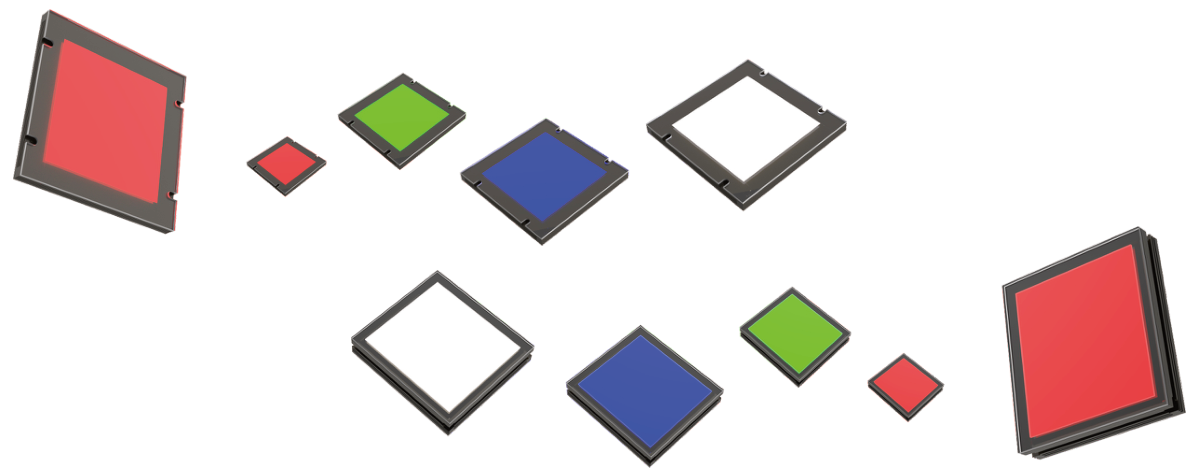

120 x 120 mm Collimated LED Backlight (LS-BCP-120X120)
Model LS-BCP-120X120
120 x 120 mm Collimated LED Backlight. Collimated bottom-lit backlight (LED array + diffuser) that sharpens product edges and raises contrast, 19 mm thick.
Features
- Flexible design for width, length, and overall dimensions.
- Effectively enhances product edge sharpness and contrast.
- High uniformity.
Specifications
| Model | LS-BCP-120X120 |
|---|---|
| Voltage (V) | 24 |
| Emitting area (mm) | 120x120 |
| Outer size LxWxH (mm) | 134x134x19 |
| Colours | Red, Green, Blue, White |
| Thickness (mm) | 19 |
| Mounting | 4 x M3, 5 mm deep, on 127 x 80 mm (back) |
| Cable length (mm) | 500 |
| Connector | 3-pin: 1 +, 2 not connected, 3 - |
| Shipping weight | 0.55 kg |
Applications
- Metal cylinder contour inspection, glass bottle diameter inspection, ceramic column diameter inspection, screw thread contour inspection.
- Transparent packaging box detection
- Contour defects
- Burrs on gold-plated components
- Coil burr detection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Collimated Bottom Back Light (BCP series) series
| Model | Size | Power | Colours | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-BCP-27X27 | 27 x 27 mm | 2.5 W | $89.00 | 15 in stock | View | |
| LS-BCP-43X35 | 43 x 35 mm | 2.5 W | $99.00 | 18 in stock | View | |
| LS-BCP-50X50 | 50 x 50 mm | 6.5 W | $99.00 | 16 in stock | View | |
| LS-BCP-63X60 | 63 x 60 mm | 8 W | $109.00 | 16 in stock | View | |
| LS-BCP-83X75 | 83 x 75 mm | 9.5 W | $119.00 | 10 in stock | View | |
| LS-BCP-100X100 | 100 x 100 mm | 10 W | $139.00 | 14 in stock | View | |
| LS-BCP-200X50 | 200 x 50 mm | 25 W | $139.00 | 12 in stock | View | |
| LS-BCP-140X105 | 140 x 105 mm | 15 W | $159.00 | 13 in stock | View | |
| LS-BCP-160X120 | 160 x 120 mm | 20 W | $179.00 | 15 in stock | View | |
| LS-BCP-200X150 | 200 x 150 mm | 30 W | $229.00 | 13 in stock | View | |
| LS-BCP-224X170 | 224 x 170 mm | 25 W | $269.00 | 16 in stock | View | |
| LS-BCP-211X200 | 211 x 200 mm | 33 W | $289.00 | 16 in stock | View |
