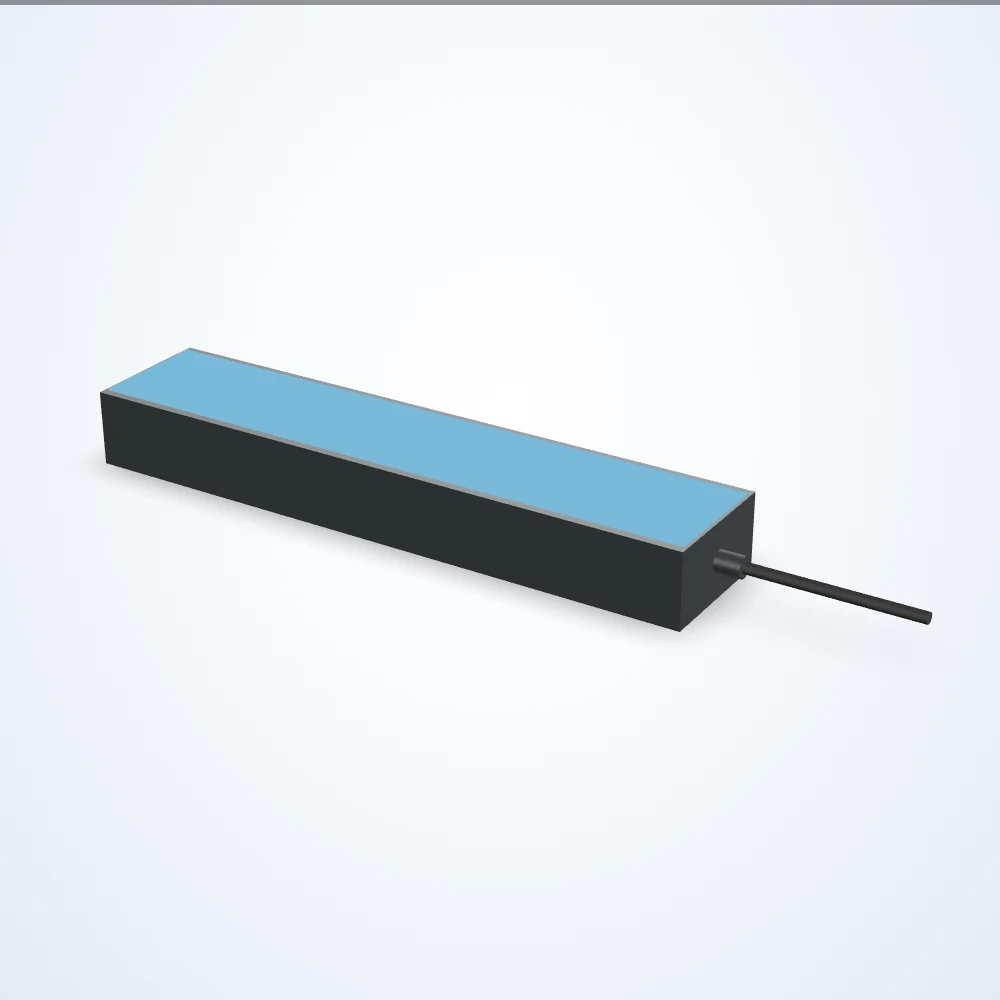

Rendered illustration: the actual product may differ in appearance.
Bar lights
Bar light, 300 mm lit length (LS-BAR-0177)
Model LS-BAR-0177
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 300 x 56.9 mm; 24 VDC supply; connection: flying leads. Choose colour below (4 configurations) and request a quote.
Specifications
| Model | LS-BAR-0177 |
|---|---|
| Lens / beam angle | Diffused |
| Lit length (mm) | 300 |
| Lit width (mm) | 56.9 |
| Length (mm) | 303.2 |
| Width (mm) | 65 |
| Height (mm) | 36.1 |
| Voltage | 24 VDC |
| Connector | Flying Leads |
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Overcurrent Strobe, Overcurrent Strobe - Dimmable |
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Operating temperature | -18 to 40 °C |
| IP rating | IP65 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
| Collimated | Not Collimated |
| Daisy chain | No |
| Diffused | Diffused |
| Direct connect | No |
| Driver nomenclature | SVL OverDrive Driver |
| Max overcurrent strobe current | 2 mA |
| Max overcurrent strobe input power | 23 W |
| Maximum current (overcurrent strobe) (ma) | 2 |
| Maximum duty cycle (%) | 3.5 |
| Maximum input power overcurrent strobe (w) | 23 |
| Maximum overcurrent strobe duration (ms) | 1 |
| Maximum overcurrent strobe duty cycle (%) | 3.5 |
| Maximum overcurrent strobe frequency (hz) | 4000 |
| Maximum overcurrent strobe latency (us) | 6 |
| Minimum overcurrent strobe duration (us) | 25 |
| NPN trigger current (ma) | 10 |
| NPN trigger voltage (v) | < 1 VDC |
| PNP trigger current (ma) | 13.4 |
| PNP trigger voltage (v) | 4-24 VDC |
| Polarized | Not Polarized |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
