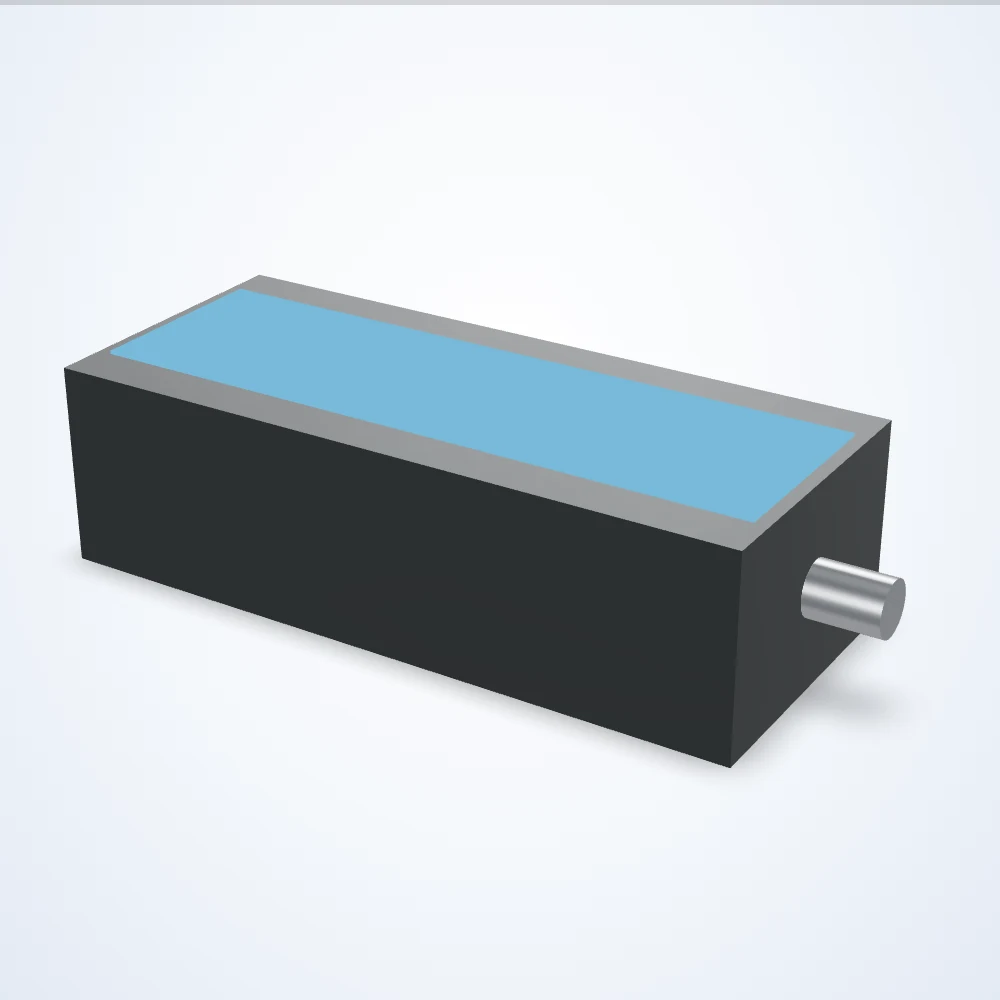

Rendered illustration: the actual product may differ in appearance.
Bar lights
156.1 x 66 mm bar light (LS-BAR-0171)
Model LS-BAR-0171
156.1 x 66 mm bar light. Lit area 149.9 x 44 mm. Connection: 5 Pin M12 Male A-Coded. Available in 7 configurations (color); choose one below and request a quote.
Specifications
| Model | LS-BAR-0171 |
|---|---|
| Active Length (mm) | 149.9 |
| Active Width (mm) | 44 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | Yes |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL Smart Driver |
| Height (mm) | 44.5 |
| Housing Material | Aluminum |
| IP Rating | IP65 |
| Intensity Adjustment Type | Analog Voltage, Integrated Potentiometer |
| Length (mm) | 156.1 |
| Lens Angle | Diffused |
| Maximum Constant On Current (mA) | 400 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 9.6 |
| Maximum Operating Temperature (C) | 40 |
| Maximum Operating Temperature (F) | 104 |
| Maximum Storage Temperature (C) | 70 |
| Maximum Storage Temperature (F) | 158 |
| Maximum Strobe Current (mA) | 400 |
| Maximum Strobe Duration (ms) | No Limit |
| Maximum Strobe Duty Cycle (%) | 100 |
| Maximum Strobe Frequency (Hz) | 4000 |
| Maximum Strobe Input Power (W) | 10 |
| Maximum Strobe Latency (us) | 10 |
| Minimum Operating Temperature (C) | -18 |
| Minimum Storage Temperature (C) | -20 |
| Minimum Storage Temperature (F) | -4 |
| Minimum Strobe Duration (us) | 30 |
| Mounting Method | T-Slot Channels |
| NPN Trigger Current (mA) | 15 |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On, Constant On – Dimmable, Strobe, Strobe – Dimmable |
| PNP Trigger Current (mA) | 20 |
| PNP Trigger Voltage (V) | 4-24 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.29 |
| Product Weight (Lbs) | 0.63 |
| Strobe Trigger Input | NPN Trigger, PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 66 |
