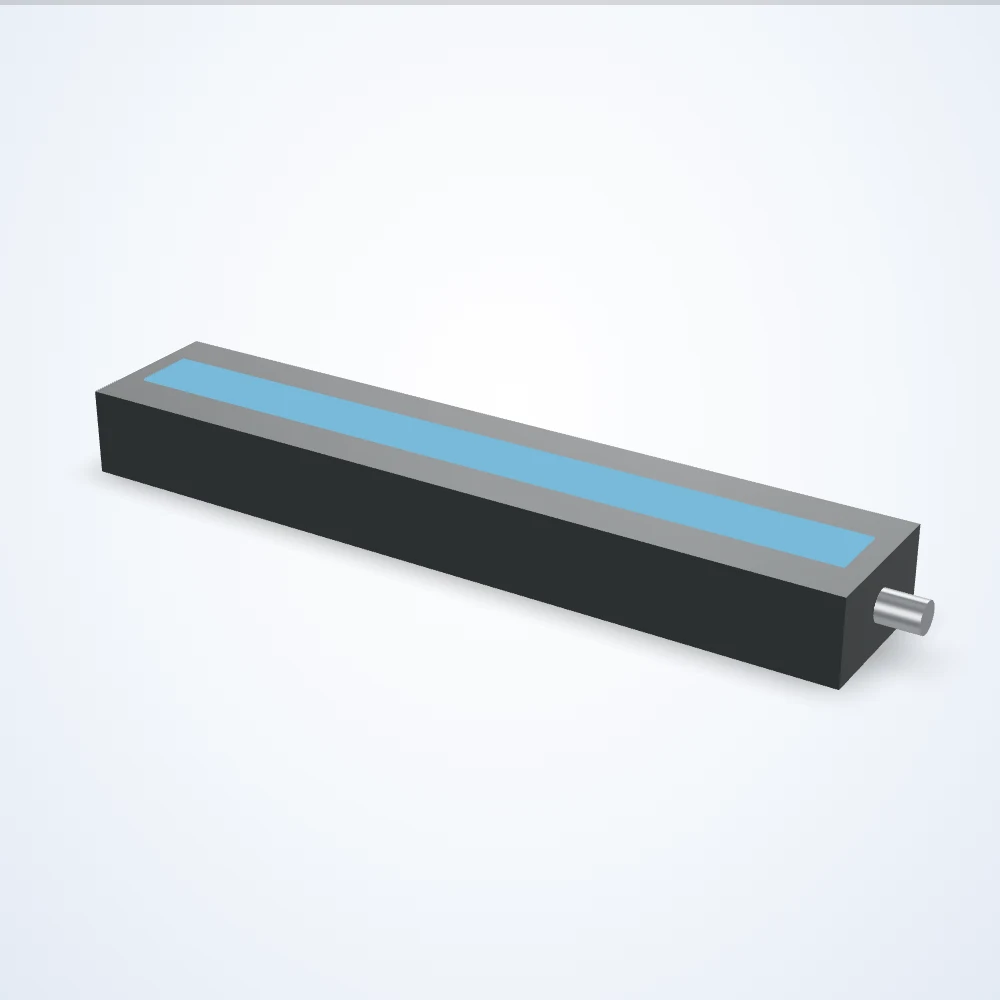

Rendered illustration: the actual product may differ in appearance.
Bar lights
306 x 60 mm bar light (LS-BAR-0138)
Model LS-BAR-0138
306 x 60 mm bar light. Lit area 289 x 24 mm. Connection: 5 Pin M12 Male A-Coded. Available in 15 configurations (color, lens angle); choose one below and request a quote.
Specifications
| Model | LS-BAR-0138 |
|---|---|
| Active Length (mm) | 289 |
| Active Width (mm) | 24 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | No |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL Multi-Drive |
| Height (mm) | 33.2 |
| Housing Material | Plastic |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 306 |
| Maximum Constant On Current (mA) | 700 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 17 |
| Maximum Operating Temperature (C) | 40 |
| Maximum Operating Temperature (F) | 104 |
| Maximum Storage Temperature (C) | 70 |
| Maximum Storage Temperature (F) | 158 |
| Minimum Operating Temperature (C) | -10 |
| Minimum Operating Temperature (F) | 14 |
| Minimum Storage Temperature (C) | -20 |
| Minimum Storage Temperature (F) | -4 |
| Mounting Method | Through Holes |
| NPN Trigger Current (mA) | 14 |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On |
| PNP Trigger Current (mA) | 17.6 |
| PNP Trigger Voltage (V) | 4-24 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.37 |
| Product Weight (Lbs) | 0.82 |
| Strobe Trigger Input | Constant On Only |
| Voltage | 24 VDC |
| Width (mm) | 60 |
