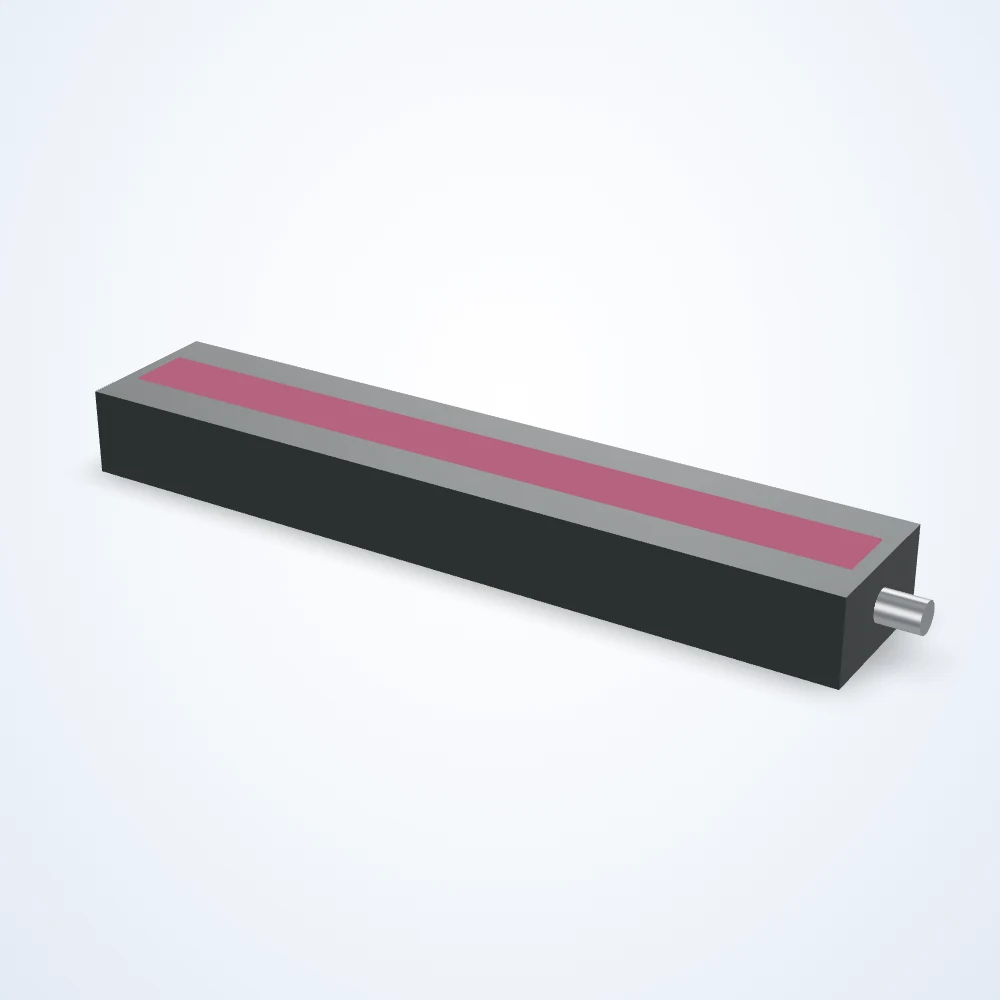

Rendered illustration: the actual product may differ in appearance.
Bar lights
306 x 59.9 mm bar light (LS-BAR-0134)
Model LS-BAR-0134
306 x 59.9 mm bar light. Lit area 294 x 24 mm. Connection: 5 Pin M12 Male A-Coded. Available in 55 configurations (color, lens angle, polarized); choose one below and request a quote.
Specifications
| Model | LS-BAR-0134 |
|---|---|
| Active Length (mm) | 294 |
| Active Width (mm) | 24 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | Yes |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Driver Nomenclature | SVL Smart Driver |
| Height (mm) | 33.2 |
| Housing Material | Plastic |
| IP Rating | IP50 |
| Intensity Adjustment Type | Analog Voltage, Integrated Potentiometer |
| Length (mm) | 306 |
| Maximum Constant On Current (mA) | 700 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 17 |
| Maximum Operating Temperature (C) | 40 |
| Maximum Operating Temperature (F) | 104 |
| Maximum Storage Temperature (C) | 70 |
| Maximum Storage Temperature (F) | 158 |
| Maximum Strobe Current (mA) | 700 |
| Maximum Strobe Duration (ms) | 1000 |
| Maximum Strobe Duty Cycle (%) | 100 |
| Maximum Strobe Frequency (Hz) | 4000 |
| Maximum Strobe Input Power (W) | 17 |
| Maximum Strobe Latency (us) | 10 |
| Minimum Operating Temperature (C) | -10 |
| Minimum Operating Temperature (F) | 14 |
| Minimum Storage Temperature (C) | -20 |
| Minimum Storage Temperature (F) | -4 |
| Minimum Strobe Duration (us) | 30 |
| Mounting Method | Through Holes |
| NPN Trigger Current (mA) | 14.4 |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On, Constant On – Dimmable, Strobe, Strobe – Dimmable |
| PNP Trigger Current (mA) | 17.6 |
| PNP Trigger Voltage (V) | 4-24 VDC |
| Product Weight (Kg) | 0.37 |
| Product Weight (Lbs) | 0.82 |
| Strobe Trigger Input | NPN Trigger, PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 59.9 |
