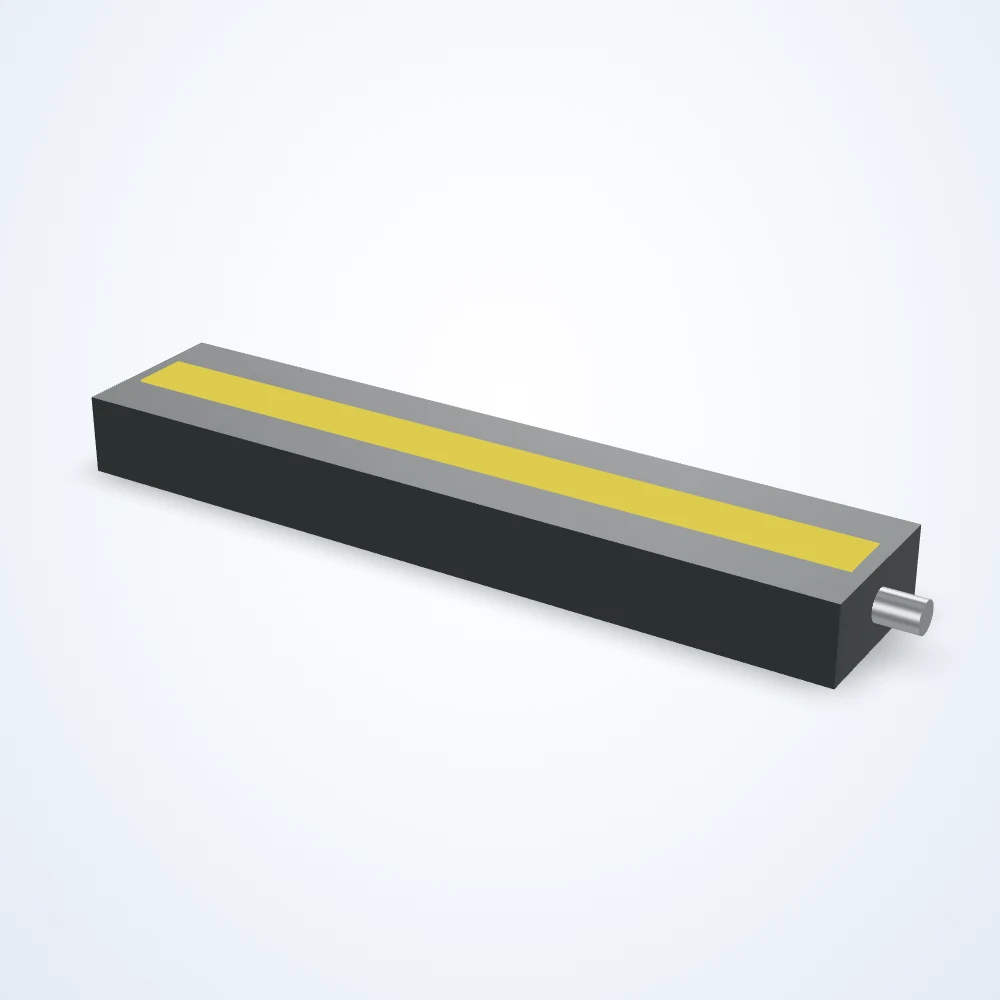

Rendered illustration: the actual product may differ in appearance.
Bar lights
300 x 64 mm bar light (LS-BAR-0127)
Model LS-BAR-0127
300 x 64 mm bar light. Colour: 590nm Amber. Lit area 288.5 x 21.9 mm. Connection: 5 Pin M12 Male A-Coded.
Specifications
| Model | LS-BAR-0127 |
|---|---|
| Active Length (mm) | 288.5 |
| Active Width (mm) | 21.9 |
| Collimated | Not Collimated |
| Color | 590nm Amber |
| Compliances | CE |
| Connector Type | 5 Pin M12 Male A-Coded |
| Connectorized At Light | Connectorized |
| Daisy Chain | Yes |
| Direct Connect | No |
| Driver Included | Included |
| Driver Location | Internal |
| Height (mm) | 30 |
| Housing Material | Aluminum |
| IP Rating | IP67 |
| Intensity Adjustment Type | Analog Voltage |
| Length (mm) | 300 |
| Lens Angle | 32 Degree |
| Maximum Constant On Current (mA) | 490 |
| Maximum Current (Overcurrent Strobe) (mA) | 490 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Input Power Constant On (W) | 11.8 |
| Maximum Input Power Overcurrent Strobe (W) | 12 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Maximum Overcurrent Strobe Duration (ms) | 5 |
| Maximum Overcurrent Strobe Latency (us) | 10 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| NPN Trigger Voltage (V) | < 1 VDC |
| Operation Modes | Constant On |
| PNP Trigger Voltage (V) | 4-24 VDC |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.25 |
| Product Weight (Lbs) | 0.55 |
| Strobe Trigger Input | PNP Trigger |
| Voltage | 24 VDC |
| Width (mm) | 64 |
