Bar lights

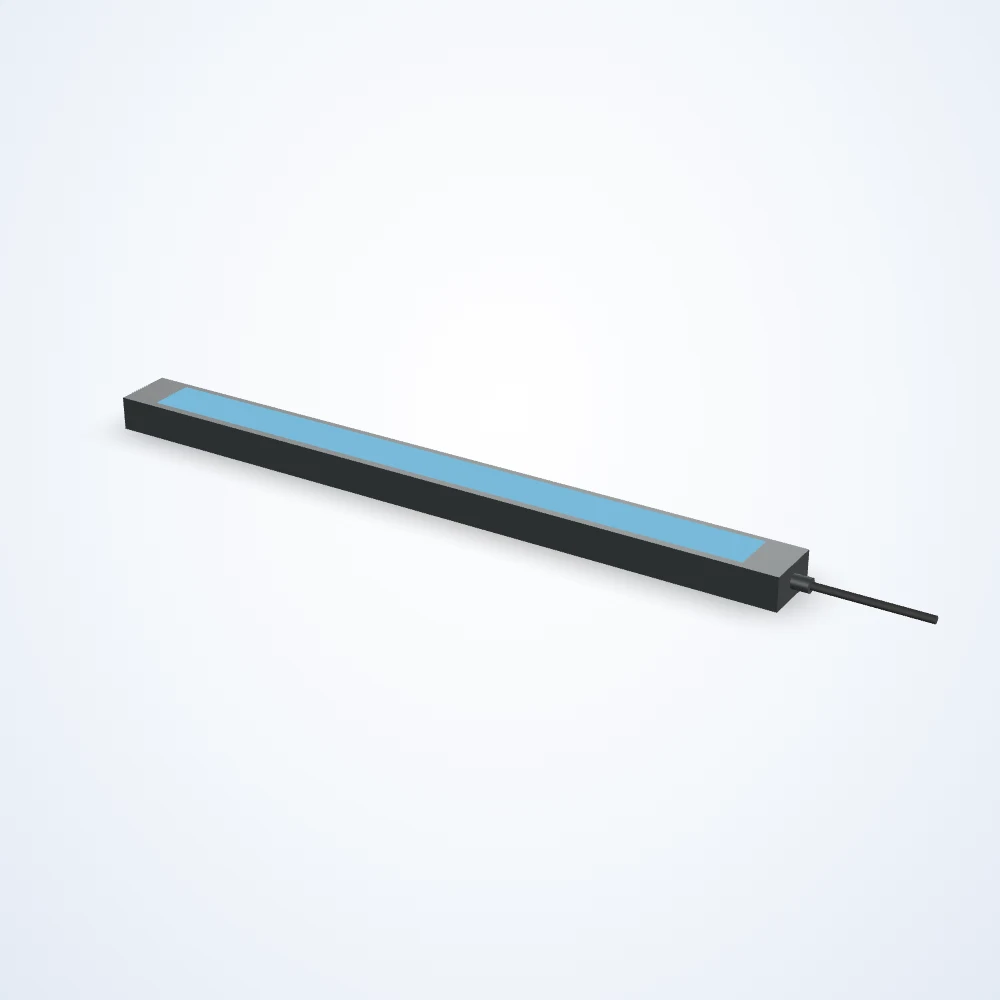

511.05 x 42.9 mm bar light (LS-BAR-0108-L3)
Model LS-BAR-0108-L3
511.05 x 42.9 mm bar light. Lit area 457.2 x 31.7 mm. Connection: Flying Leads. Available in 198 configurations (color, driver included, driver location, driver nomenclature); choose one below and request a quote.
Specifications
| Model | LS-BAR-0108-L3 |
|---|---|
| Active Length (mm) | 457.2 |
| Active Width (mm) | 31.7 |
| Cable Length (mm) | 2 |
| Collimated | Not Collimated |
| Compliances | CE, IEC 62471, RoHS |
| Connector Type | Flying Leads |
| Connectorized At Light | Hardwired |
| Daisy Chain | No |
| Direct Connect | No |
| Height (mm) | 24 |
| IP Rating | IP69K |
| Length (mm) | 511.05 |
| Maximum Duty Cycle (%) | 100 |
| Maximum Operating Temperature (C) | 60 |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 32 |
| Mounting Method | Tapped Holes |
| Polarized | Not Polarized |
| Product Weight (Kg) | 0.9 |
| Product Weight (Lbs) | 1.99 |
| Voltage | 24 VDC |
| Width (mm) | 42.9 |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the 511.05 x 42.9 mm bar light series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0108-L1 | Price on request | 714 in stock | View | |
| LS-BAR-0108-L2 | Price on request | 713 in stock | View | |
| LS-BAR-0108-L4 | Price on request | 462 in stock | View |
