Machine vision lenses

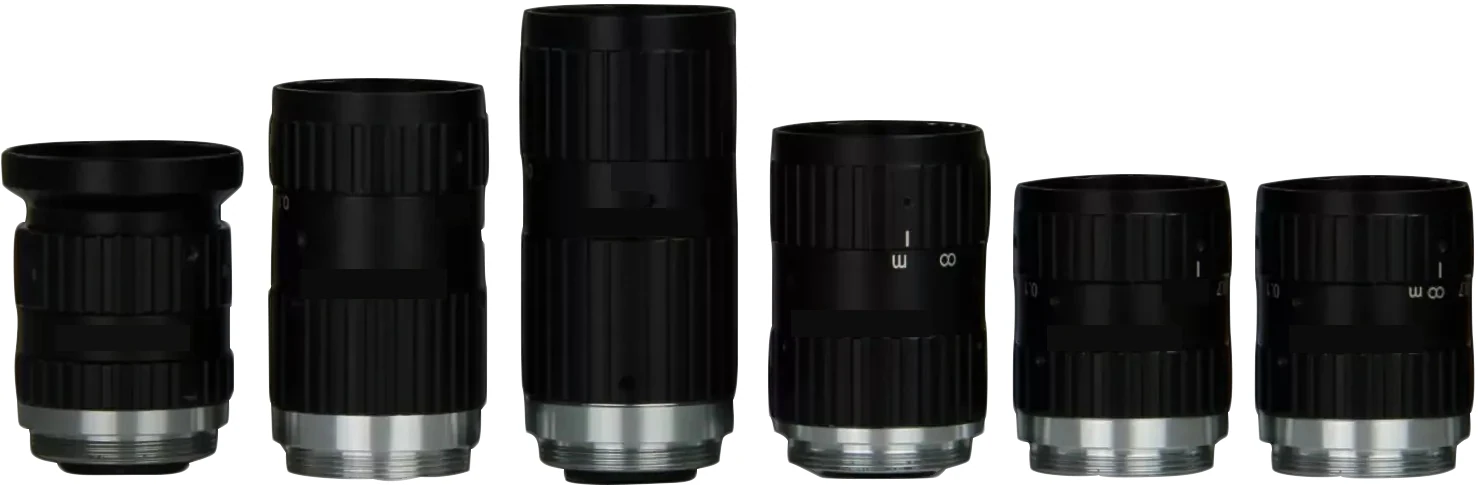

Industrial lens, 2/3" 10MP FA lens, 25 mm, 2/3", C-mount (LS-B2528-10M)
Model LS-B2528-10M
Specifications
| Model | LS-B2528-10M |
|---|---|
| Mount | C Mount |
| Max image surface size | 2/3" |
| Focal length (mm) | 25 |
| Aperture | 2.8 |
| FOV @ WD 200 (H x V), 2/3" sensor | 71.5 x 53.5 |
| FOV @ WD 200 (H x V), 1/2" sensor | 51.6 x 38.7 |
| FOV @ WD 200 (H x V), 1/3" sensor | 38.2 x 28.7 |
| TV distortion | <0.1% |
| Min distance | 0.1M |
| Filter thread | M27 x P0.5 |
| Interface | C Mount |
| Sensor format | 2/3" |
| Resolution (MP) | 10 |
| Field of view | 71.5 x 53.5 |
| Shipping weight | 0.38 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Industrial lens, 2/3" 10MP FA lens series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-B0828-10M | 8 mm, 2/3", C-mount | $189.00 | 4 in stock | View |
| LS-B1228-10M | 12 mm, 2/3", C-mount | $199.00 | 5 in stock | View |
| LS-B1628-10M | 16 mm, 2/3", C-mount | $199.00 | 5 in stock | View |
| LS-B3528-10M | 35 mm, 2/3", C-mount | $229.00 | 5 in stock | View |
| LS-B5028-10M | 50 mm, 2/3", C-mount | $249.00 | 4 in stock | View |
