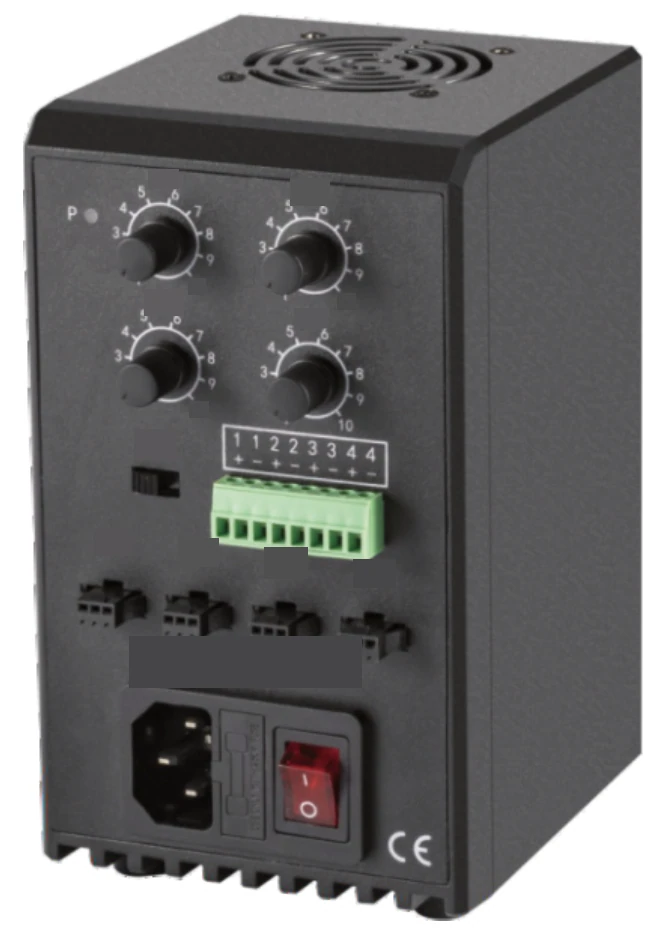

Analog controller, APS series, 4 ch, 60 W (LS-APS2460B-4TD)
Model LS-APS2460B-4TD
Analog controller with manual stepless brightness control, constant-on/constant-off mode switch and optocoupler-isolated external trigger; screw or 35 mm DIN rail installation.
Features
- Manual stepless brightness control
- Constant light / constant off mode switch to suit the actual situation
- External trigger uses high-speed optocoupler isolation for an accurate, reliable trigger signal
- Over-current, overload and short-circuit protection in one
- Screw installation or standard DIN rail installation
Specifications
| Model | LS-APS2460B-4TD |
|---|---|
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
| Storage temp/humidity | 20~60 °C, 20~85 %RH (non-condensing) |
| Drive method | Constant voltage |
| Light mode | Variable voltage control, panel knob |
| Input voltage | AC100-240V 50/60Hz |
| Max output voltage | 24V |
| Channel number | 4 |
| Max output current | 2.5A (single channel max current 2.5A) |
| Total power | 60W |
| Output port | SMP-03V-BC (1: input+, 2: NC, 3: output-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <300us (load dependent) |
| Cooling method | Forced cooling |
| Dimensions (mm) | 90 W x 150 H x 98.5 D (body; 8.25 rail clasp, 14.9 front parts) |
| Mounting | 35 mm DIN rail clasp or 3-M3 (remove the rail clasp) |
| Trigger port | 8-pin, 1+/1- to 4+/4- per channel; negative/positive trigger switch |
| Channels | 4 |
| Total output (W) | 60 |
| Control | Analog panel knob |
| Shipping weight | 0.70 kg |
