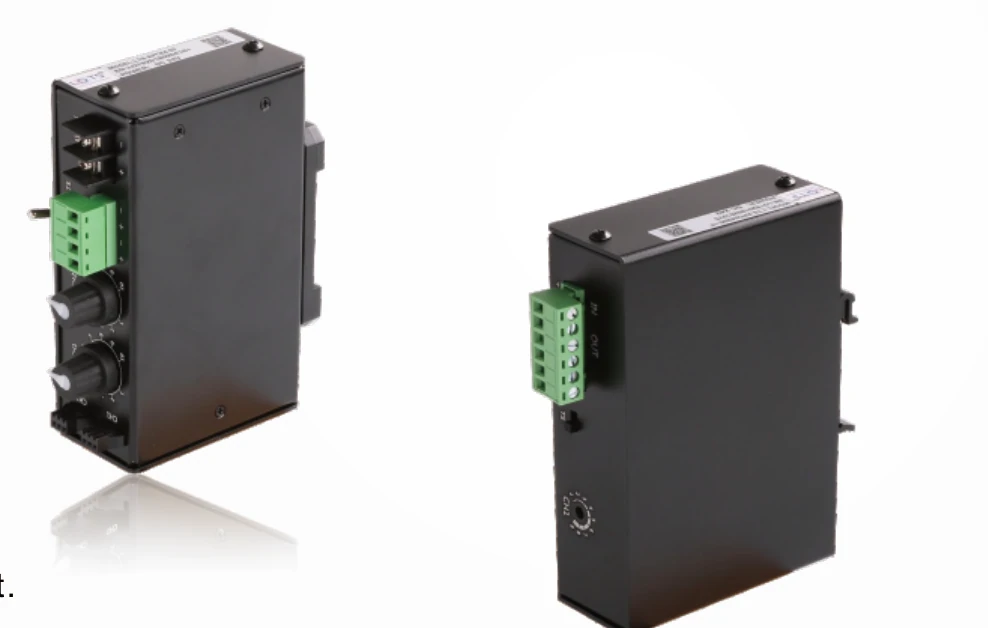

Analog control box (APC), 1 ch, 200 W (LS-APC24200-1F)
Model LS-APC24200-1F
Analog control box with DC 24V input: 12-24V output voltage adjustable, manual luminance control, buckle (DIN) rail installation and self-recovering short-circuit protection.
Features
- Voltage adjustable: 12-24V output voltage
- Manual luminance control
- Easy to install: buckle rail installation
- Short-circuit protection with self-recovery
Specifications
| Model | LS-APC24200-1F |
|---|---|
| Input voltage | DC 24V |
| Output voltage range | 12-24V |
| Luminance control method | manual adjusting |
| Luminance control mode | constant voltage |
| Normal on/normal closed mode switch | supported (toggle switch TS) |
| Channels | 1 |
| Output voltage | 12-24V |
| One way max. output power | 200W |
| Total output power | 200W |
| External trigger support | Y |
| External trigger voltage | 5-24V |
| Luminance control | Build-in potentiometer adjusting |
| Shipping weight | 0.35 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Analog control box (APC) series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-APC2424-2F | 2 ch, 48 W | 48 W | $119.00 | 3 in stock | View |
| LS-APC2430-2F | 2 ch, 60 W | 60 W | $119.00 | 3 in stock | View |
