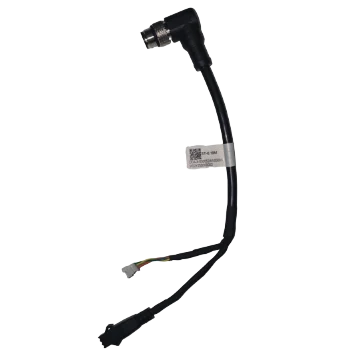

Cable, M12 8-pin connector, Male to SM 3-pin, Female + Pico Blade 4-pin, Male, 0.19 m (LS-ACP-M12A8MU-SMRFPB4-ST-0.19M)
Model LS-ACP-M12A8MU-SMRFPB4-ST-0.19M
Cable, M12 8-pin connector, Male to SM 3-pin, Female + Pico Blade 4-pin, Male, 0.19 m. M12 8-pin extension control cable for connecting industrial cameras to external light devices and driving motorized/liquid lenses; currently available in 0.19 m length.
Features
- M12 8-pin extension control cable for connecting industrial cameras to external light devices and driving motorized/liquid lenses; currently available in 0.19 m length.
Specifications
| Model | LS-ACP-M12A8MU-SMRFPB4-ST-0.19M |
|---|---|
| End A connector | M12 8-pin connector, Male |
| End B connector | SM 3-pin, Female + Pico Blade 4-pin, Male |
| Cable diameter | 6 mm |
| Length | 0.19 m |
| Cable mechanical | 28#*2P+28#*4C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector model | made in China |
| Connector durability | >750 cycles |
| Min. bending radius | 72 mm |
| Applicable scenario | Static, Waterproof |
| Max. voltage | 30 VDC |
| Ingress protection | IP67 (with camera mounted) |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
