Light controllers

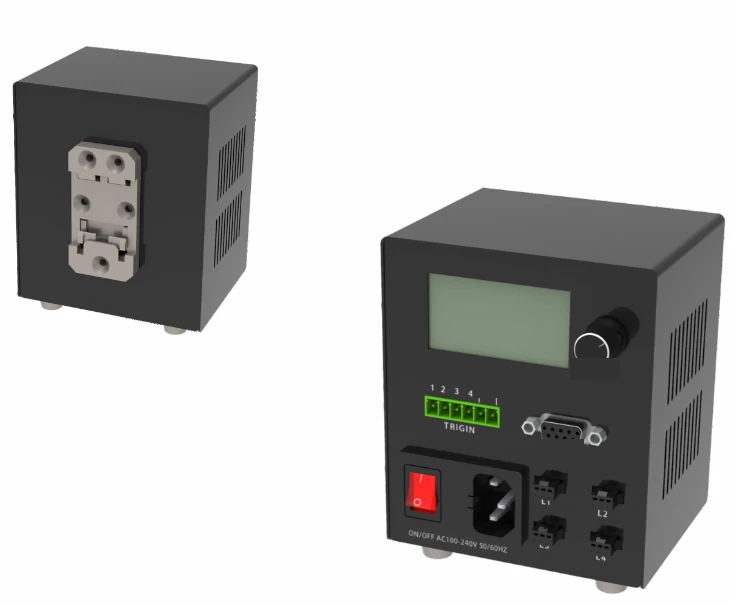

ACC spot lighting controller, 4 ch, 10 W (LS-ACC-1005-4)
Model LS-ACC-1005-4
Ensures stable brightness of the light source. Automatically recognizes lighting power, outputs the corresponding current value. With a constant current accuracy of up to 0.5%.
Features
- Small size, light weight, and flexible installation.
- 256 levels of brightness adjustment.
- Variable current control.
Specifications
| Model | LS-ACC-1005-4 |
|---|---|
| Lighting mode | Continuous mode |
| Input voltage | AC 100-240W |
| Drive mode | Constant Current |
| Dimming method | Variable current control |
| Number of channels | 4CH |
| Suitable light | 5V 3W MAX (Spot light) |
| Emission delay | 10us MAX |
| Trigger input voltage | 5-24V |
| Total output (W) | 10 |
| Control | 256-level digital / RS232 option (per coding rule) |
| Power (W) | 10 |
| Shipping weight | 0.50 kg |
Applications
- Suitable for 5V spot light within 3W power.
