Light controllers

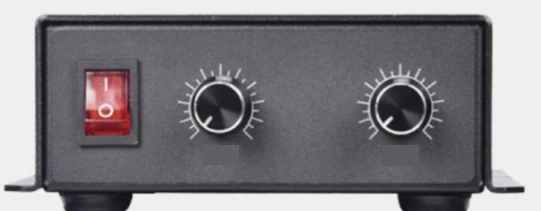

Compact analog point light controller, 2 channels, 2 ch, 10 W (LS-AC10-A02-050075-2)
Model LS-AC10-A02-050075-2
Analog constant current control. Support external trigger mode. Low trigger response time.
Features
- Analog constant current control
- Support external trigger mode
- Low trigger response time
- Knob stepless linear adjustment of brightness
- Normally bright and normally off mode can be switched
- 5-24V trigger, adaptable to high and low level trigger modes
Specifications
| Model | LS-AC10-A02-050075-2 |
|---|---|
| Maximum output current of single channel | 0.75A |
| Maximum input voltage | 220VAC |
| Maximum output voltage | 5V |
| Overheat protection | NO |
| Working mode | Constant on mode, constant off mode |
| Short circuit protection | NO |
| Brightness level | Knob stepless linear adjustment |
| Trigger mode | Level Trigger |
| Operating temperature | 5~50°C |
| Driving mode | Constant Current |
| Luminous mode | Constant Brightness |
| Dimension | 129x148x44mm |
| Built-in power supply power | 10W |
| Number of channels | 2 |
| Connected light source type | 5V point light source |
| Catalog page | P53 |
| Total output (W) | 10 |
| Control | analog knob |
| Shipping weight | 0.50 kg |
