Light controllers

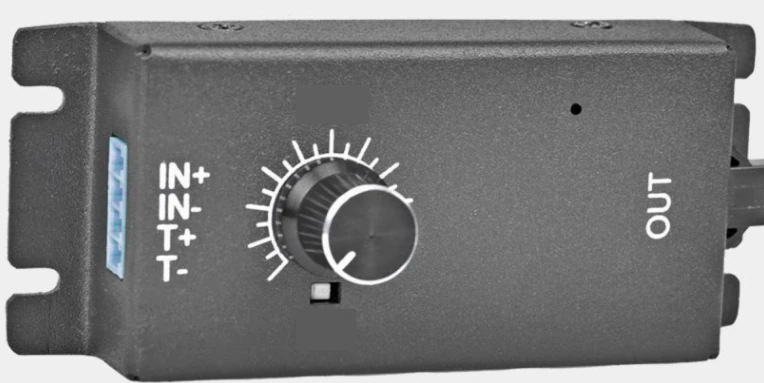

Mini analog point light controller, 1 channel, 1 ch (LS-AC-2405005-1)
Model LS-AC-2405005-1
Small size, can be applied to the narrow space installation. Stepless brightness adjustment. Support external trigger function, the response speed is less than (value not printed).
Features
- Small size, can be applied to the narrow space installation
- Stepless brightness adjustment
- Support external trigger function, the response speed is less than (value not printed)
- Supports switching between constant on and constant off modes
- Input anti-reverse and anti-surge function
- Output over-current protection, short circuit protection
- Low cost, high reliability
Specifications
| Model | LS-AC-2405005-1 |
|---|---|
| Maximum output current of single channel | 0.5A |
| Maximum input voltage | 5V/24V |
| Maximum output voltage | 5V |
| Overheat protection | NO |
| Adjustment knob | Adjust the brightness of the light source |
| Short circuit protection | NO |
| Connection light source type | 5V point light source |
| Trigger mode | Edge + Level Trigger |
| Operating temperature | 5~50°C |
| Light source | Output DC5V |
| Mode selection button | Select the mode of always on, always off |
| Output indication | Light source interface output indication |
| Power input interface | Input DC5V/24V |
| Dimension | 100×42×36mm |
| Built-in power supply power | NO |
| Number of channels | 1 |
| Connected light source type | 5V point light source |
| Input voltage | 24V |
| Driving mode | Constant Voltage |
| Catalog page | P54 |
| Control | analog knob |
| Shipping weight | 0.25 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Mini analog point light controller, 1 channel (AC-05005) series
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-AC-05005-1 | 1 ch | $89.00 | 3 in stock | View |
