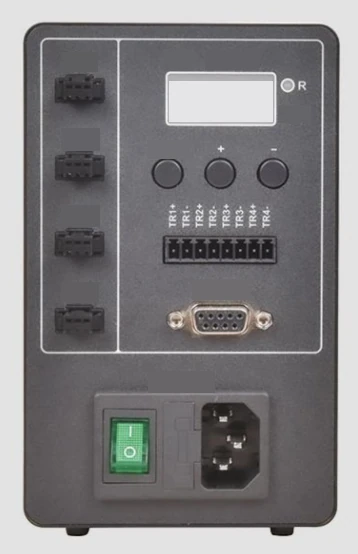

ABS point light controller, 4 ch, 65 W (LS-65-MP01C-05010-4)
Model LS-65-MP01C-05010-4
Support RS232 communication. Single channel adjustable output current, maximum current 1A. Support external trigger mode.
Features
- Support RS232 communication
- Single channel adjustable output current, maximum current 1A
- Support external trigger mode
- Support millisecond strobe and microsecond strobe
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Small size, easy to install, screw mounting or C45 rail mounting
Specifications
| Model | LS-65-MP01C-05010-4 |
|---|---|
| Maximum output current of single channel | 1A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 5V |
| Overheat protection | no |
| Working mode | 0: Internal trigger; 1: Always on; 2: Millisecond level flicker; 3: Microsecond level flicker |
| Short circuit protection | no |
| Brightness level | 255 levels |
| Millisecond strobe time | 1~999ms |
| Microsecond strobe time | 1~999us |
| Communication baud rate | 9600-115200bps optional |
| Trigger mode | Edge + level trigger |
| Operating temperature | 5~50°C |
| Luminous mode | Normal light, normal extinction, strobe |
| Driving mode | constant current |
| Dimension | 90×94.6×150mm |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Connected light source type | 10mA~1A 5V power supply |
| Catalog page | P25 |
| Output voltage | 5V |
| Built-in power supply | 65W |
| Max current per channel | 1A |
| Communication | RS232 |
| Trigger | 5~24V trigger |
| Mounting | Screw or C45 rail installation |
| Manual page code | P25 |
| Total output (W) | 65 |
| Control | digital (buttons, 4-digit display) / RS232 |
| Shipping weight | 0.65 kg |
