Line scan lights

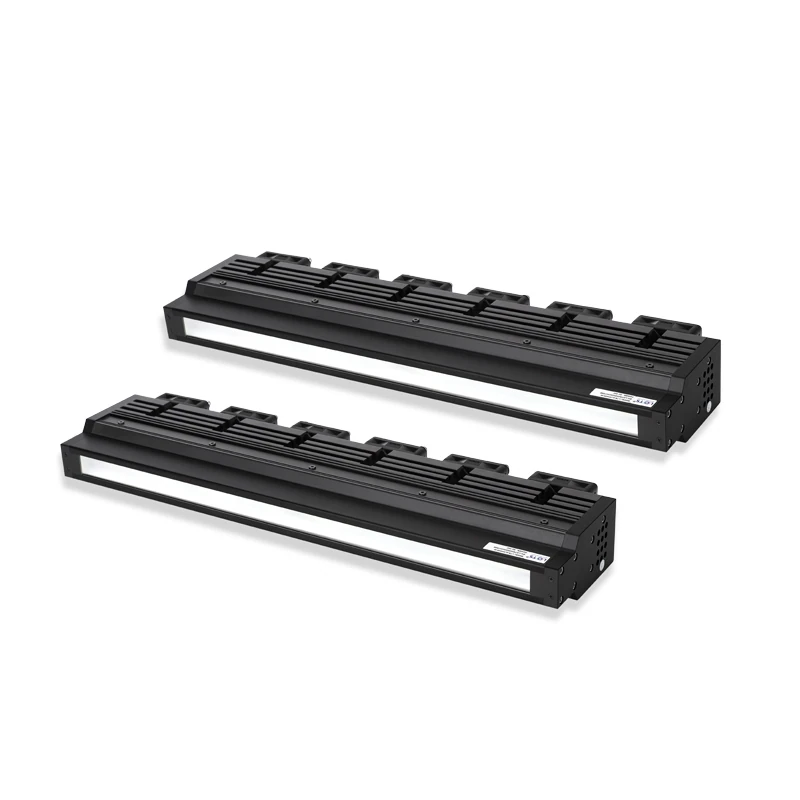

Ultra brightness line scan light (4LINH) (LS-4LINH700)
Model LS-4LINH700
Unique optical design, luminance reach to 3.2 millions. High uniformity and good parallelism. Matched with high speed line scan camera.
Features
- Unique optical design, luminance reach to 3.2 millions
- High uniformity and good parallelism
- Matched with high speed line scan camera
Specifications
| Model | LS-4LINH700 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Model as printed | LS-4LINH700-R/BGW |
| Dimension | L740xW50xH117.13(mm) |
| Voltage | 48V |
| Power | 588W |
| Shipping weight | 2.80 kg |
Applications
- Steel plate inspection
- Glass surface inspection
- Metal surface inspection
- Contour edges inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Ultra brightness line scan light (4LINH) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-4LINH100 | 84 W | $349.00 | 12 in stock | View | ||
| LS-4LINH200 | 168 W | $539.00 | 16 in stock | View | ||
| LS-4LINH300 | 252 W | $729.00 | 17 in stock | View | ||
| LS-4LINH400 | 336 W | $919.00 | 18 in stock | View | ||
| LS-4LINH500 | 420 W | $1,109.00 | 13 in stock | View | ||
| LS-4LINH600 | 504 W | $1,299.00 | 13 in stock | View | ||
| LS-4LINH800 | 672 W | $1,679.00 | 14 in stock | View | ||
| LS-4LINH900 | 756 W | $1,869.00 | 13 in stock | View | ||
| LS-4LINH1000 | 840 W | $2,049.00 | 13 in stock | View |
