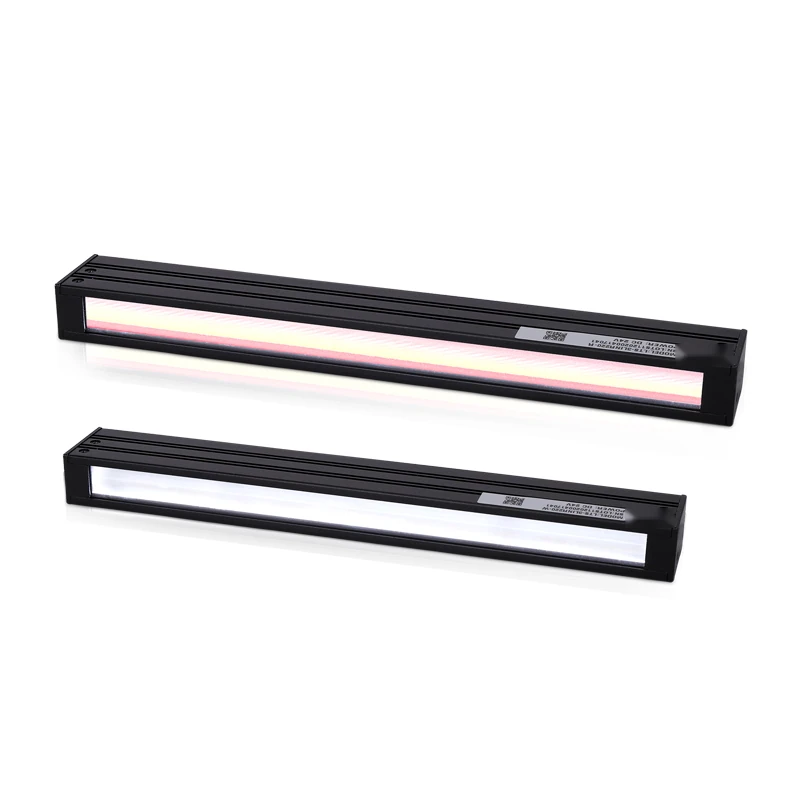

Mini line scan light (3LINR) (LS-3LINR320)
Model LS-3LINR320
High brightness up to 2 million illumination, can add optical film to improve uniformity, adapted to circuit board surface and battery coating inspection.
Features
- Use high power surface-mount lamp, high luminance
- Compact volume, width only 30mm, natural cooling
- Standard model add the optical film to improve the uniformity
Specifications
| Model | LS-3LINR320 |
|---|---|
| Cooling | Natural cooling |
| Note | UV & IR light can be customized as required. |
| Voltage | 24V |
| Model as printed | LS-3LINR320-RGB/W |
| Dimension | L320xW20xH30(mm) |
| Power | 21.6W/19.5W |
| Shipping weight | 0.45 kg |
Applications
- Displayer surface dusty inspection
- Paste label surface defect inspection
- Packaging carton location inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Mini line scan light (3LINR) series
| Model | Size | Colours | Price | Availability | |
|---|---|---|---|---|---|
| LS-3LINR70 | $219.00 | 13 in stock | View | ||
| LS-3LINR80 | $239.00 | 13 in stock | View | ||
| LS-3LINR120 | $319.00 | 17 in stock | View | ||
| LS-3LINR220 | $499.00 | 13 in stock | View | ||
| LS-3LINR420 | $879.00 | 10 in stock | View | ||
| LS-3LINR520 | $1,069.00 | 11 in stock | View |
