Line scan lights

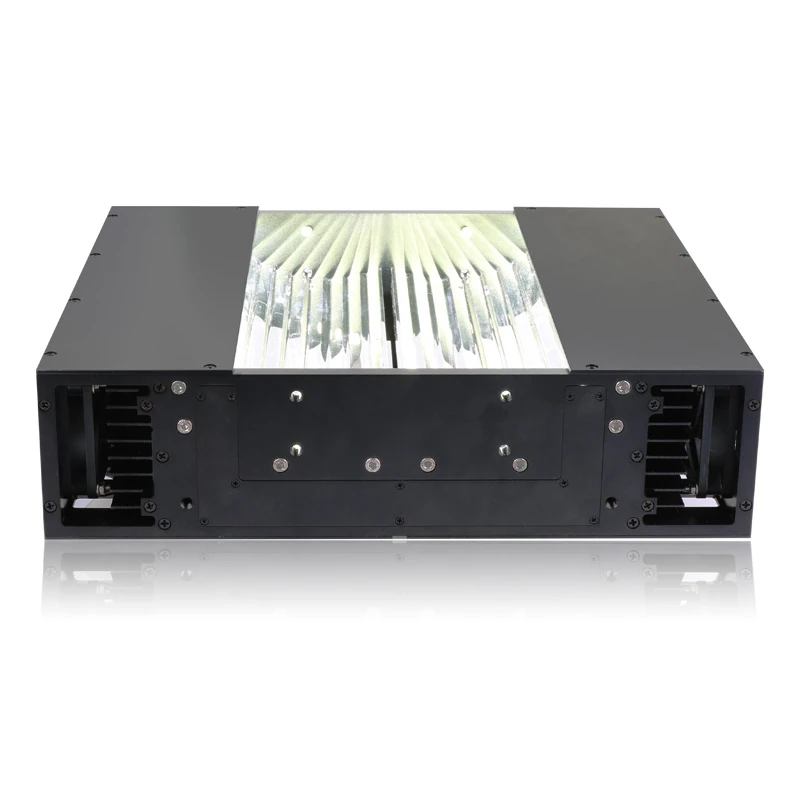

Multi-angle line scan light (3LINM) (LS-3LINM600)
Model LS-3LINM600
Scratch inspected from multiple angle, multiple direction light path have strong direction, obvious contrast between scratch and background. Tunnel line scan light have good uniformity, so that the defect homogenization, to make the contrast between scratch and background is not obvious.
Features
- Reflected from different angle, luminance can reach 1,300,000LUX
- BConcentrated light, high uniformity
- Compact structure
Specifications
| Model | LS-3LINM600 |
|---|---|
| Cooling | Fan cooling |
| Note | UV & IR light can be customized as required. |
| Model as printed | LS-3LINM600-R/BGW |
| Dimension | L616xW313xH82(mm) |
| Voltage | 48V |
| Power | 768W |
| Shipping weight | 5.60 kg |
Applications
- Scratch, bubble, stain, fingerprint in the mobile screen surface
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Multi-angle line scan light (3LINM) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-3LINM100 | 96 W | $309.00 | 13 in stock | View | ||
| LS-3LINM200 | 192 W | $499.00 | 14 in stock | View | ||
| LS-3LINM300 | 288 W | $689.00 | 12 in stock | View | ||
| LS-3LINM400 | 384 W | $879.00 | 16 in stock | View | ||
| LS-3LINM500 | 576 W | $1,059.00 | 15 in stock | View | ||
| LS-3LINM700 | 864 W | $1,439.00 | 17 in stock | View | ||
| LS-3LINM800 | 864 W | $1,629.00 | 14 in stock | View |
