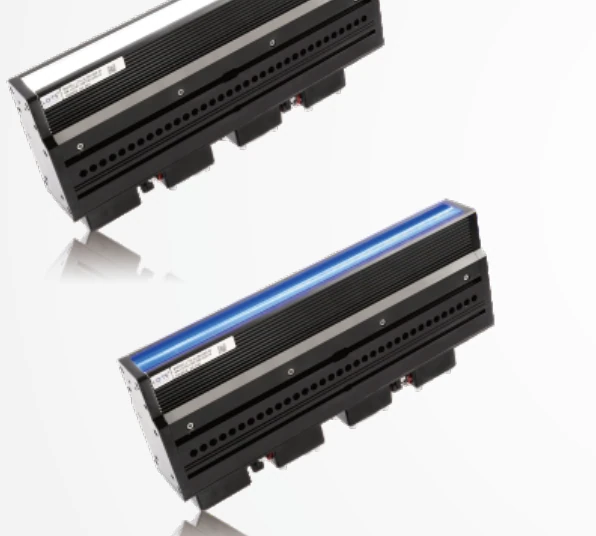

384 mm Ultra bright line scan light, fan cooled (3LINH) (LS-3LINH400)
Model LS-3LINH400
Ultra bright line scan light whose light outlet luminance can reach 2,000,000 lux, with a special heat-dissipation structure and an optical film on the standard model to improve uniformity. Offered in standard, high-luminance (-N) and high-uniformity (-F) types.
Features
- Luminance at the light outlet can reach 2,000,000 lux
- Special heat-dissipation structure, convenient to replace
- Standard model adds an optical film to improve uniformity
- For applications with high luminance requirements
- Three types: standard (optical film, no suffix), high luminance (-N), high uniformity (-F); standard for general use, high uniformity for bright field, high luminance for dark field
- Customizable: heat dissipation method, length, colour & colour temperature, cable length, installation method
Specifications
| Model | LS-3LINH400 |
|---|---|
| Voltage | 24 V / 48 V DC (by length) |
| Cooling | Fan cooling |
| Peak wavelength / colour temperature | Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature) |
| Adapted controller | High power constant current controller LS-2APC; high power constant voltage controller LS-DPA |
| Cross-section (mm) | 50 W x 107 H body; 145.46 H overall |
| Emitting width (mm) | 24 |
| Cable | 3000 mm |
| Mounting | 4-M5 depth 6; mounting plate with M3/M5 screws and nuts in screw groove |
| Installation | 1) end face locked to the device through the mounting plate by M3 screws; 2) on the flank, M3 and M5 screws go through the mounting plate into M3/M5 nuts in the screw groove |
| Operating environment | Temperature 0-50 °C, humidity 20-85% (non-condensing) |
| Life-span | 50000 h (to 50% of factory-default luminance) |
| Extension cable options | PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| UV / IR | UV & IR light can be customized as required |
| Emitting length range (mm) | 84-2984 |
| Recommended working distance | 10-500 mm |
| FOV | 1-2700 mm |
| Overall length A (mm) | 400 |
| Emitting length B (mm) | 384 |
| Voltage (V) | 24 |
| Power (W) | 288 |
| Weight (g) | 3006 |
| Drawing no. | 2 |
| Common model | Y |
| Variants | standard (no suffix) / -N high luminance (condensing) / -F high uniformity |
| Remark | Max 3 m customized |
Applications
- PCB surface inspection
- Li battery coating defect inspection
- Leather surface defect inspection
- Mobile screen film scratch inspection (dark/bright field)
- Li battery cell film defect inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Ultra bright line scan light, fan cooled (3LINH) series
