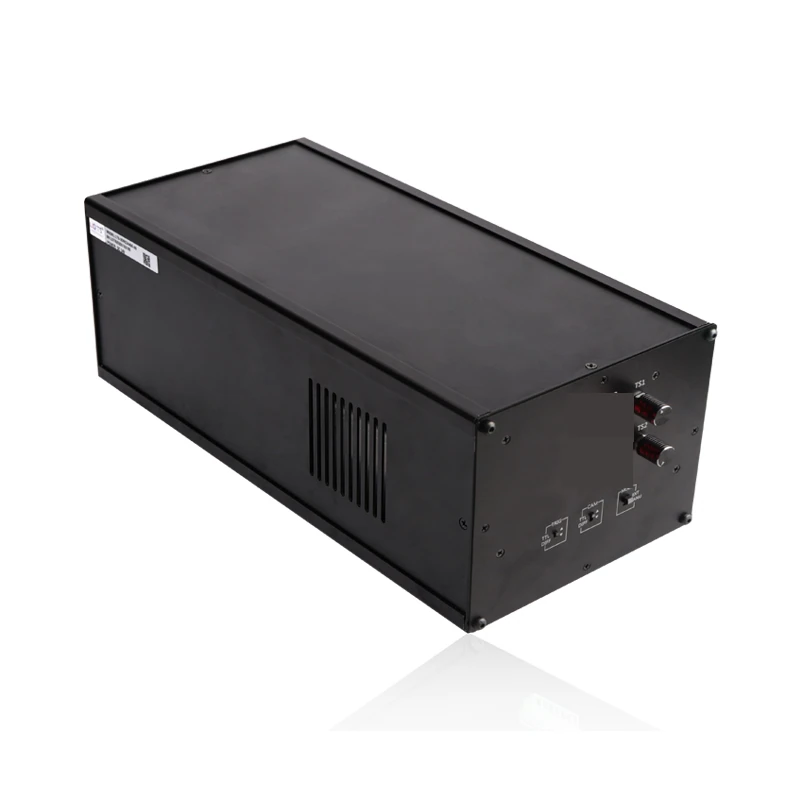

Alternate strobe controller (3DRC), 2 ch, 2000 W (LS-3DRC481000-2N)
Model LS-3DRC481000-2N
Use with line scan light. Time-sharing alternate / independent trigger mode optional. Differential / TTL trigger signal optional.
Features
- Use with line scan light
- Time-sharing alternate / independent trigger mode optional
- Differential / TTL trigger signal optional
- 5us high speed response, Max. frequency is 80K
- Lighting time 5-500us adjustable
- 512/1000 luminance levels optional
- Support RS232 or Ethernet communication
Specifications
| Model | LS-3DRC481000-2N |
|---|---|
| Input voltage | AC 100-240V |
| Input frequency range | 50/60Hz |
| Baud rate | 19200bps |
| LED lighting time | 5-68us/5-500us (alternate trigger mode); 5-999us (independent trigger mode) |
| Luminance adjustment mode | Constant voltage |
| Luminance adjustment level | 512/1000 level |
| Luminance adjustment method | Manual adjustment by encoder, PC remote adjustment |
| External input trigger signal | TTL or DIFF signal (both rising edge effective, DIFF signal only supports 5V), max. external trigger frequency up to 80KHz |
| Output camera trigger signal | TTL or DIFF signal |
| External trigger signal | 5V-24V (high level effective) |
| External trigger delay time | 5us |
| Communication mode | RS232/LAN |
| Memory function | Data saving automatically when power off |
| Operating environment | Humidity 20%-85%RH (non-condensing), temperature 0°C-50°C |
| Storage environment | Humidity 20%-85%RH (non-condensing), temperature 0°C-60°C |
| External trigger voltage | 5-24V |
| Product | Alternate strobe controller |
| Output voltage | 48V |
| Total output power | 2000W |
| One way Max.output power | 1000W |
| Number of channels | 2 |
| Control | Manual adjustment by encoder, PC remote adjustment |
| Shipping weight | 0.50 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Alternate strobe controller (3DRC) series
| Model | Size | Power | Price | Availability | |
|---|---|---|---|---|---|
| LS-3DRC24250-2N | 2 ch, 250 W | 250 W | $179.00 | 4 in stock | View |
| LS-3DRC24250-4N | 4 ch, 250 W | 250 W | $209.00 | 5 in stock | View |
| LS-3DRC48400-2N | 2 ch, 400 W | 400 W | $319.00 | 2 in stock | View |
| LS-3DRC48400-4N | 4 ch, 400 W | 400 W | $359.00 | 4 in stock | View |
