Dome lights

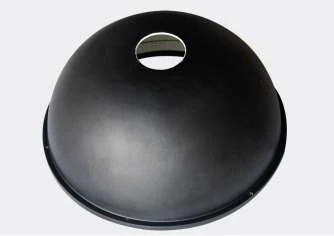

3.0 dome light (3DM series) (LS-3DM20548)
Model LS-3DM20548
3.0 generation dome light: diffused light with high output for detecting reflective, uneven, concave, convex and arc surfaces.
Features
- Diffused light from the dome for reflective and uneven surfaces
- SMD LEDs
- Three-colour RGB light source, outer/inner diameter and height, wavelength/colour temperature, mounting and input wire length customization
Specifications
| Model | LS-3DM20548 |
|---|---|
| Voltage | 24 V DC |
| LED type | SMD |
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Quality service | one year product warranty, technical support |
| Light inlet port (mm) | 48 |
| Light outlet (mm) | 205 |
| Voltage (V) | 24 |
| Power red (W) | 22.5 |
| Power blue/green/white (W) | 26.3 |
| Outer diameter (mm) | 256 |
| Height (mm) | 123.5 |
| Shipping weight | 3.45 kg |
Applications
- Detecting reflective, uneven surfaces
- Surface, concave and convex surface, arc surface detection
- Packaging industry (beverage container top)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the 3.0 dome light (3DM series) series
| Model | Size | Power | Colours | Price | Availability | |
|---|---|---|---|---|---|---|
| LS-3DM4020 | 4.2 W | $159.00 | 13 in stock | View | ||
| LS-3DM5620 | 5.2 W | $189.00 | 14 in stock | View | ||
| LS-3DM7420 | 6.3 W | $239.00 | 15 in stock | View | ||
| LS-3DM9624 | 8.2 W | $299.00 | 12 in stock | View | ||
| LS-3DM13034 | 11.7 W | $419.00 | 15 in stock | View | ||
| LS-3DM14330 | 12.2 W | $519.00 | 18 in stock | View | ||
| LS-3DM17750 | 19.5 W | $669.00 | 18 in stock | View | ||
| LS-3DM24548 | 26.8 W | $989.00 | 12 in stock | View | ||
| LS-3DM29050 | 38 W | $1,239.00 | 13 in stock | View | ||
| LS-3DM31760 | 40 W | $1,489.00 | 13 in stock | View |
