Coaxial lights

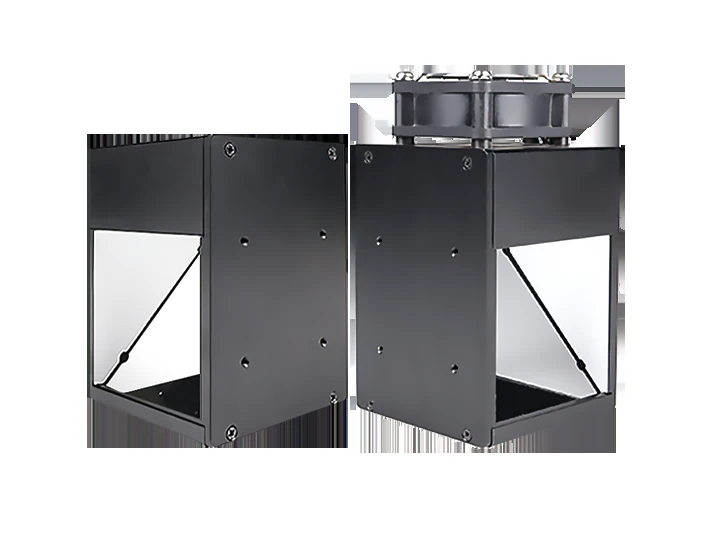

40 x 40 mm Coaxial light, high light type (COG series) (LS-3COG4040)
Model LS-3COG4040
High-brightness coaxial light (high light type) for highly reflective surfaces; luminous sizes 30 x 30 to 60 x 60 mm.
Features
- Coaxial illumination through a beam splitter: in a stamped-parts example, recessed areas appear darker and are easier to identify than under standard light
- Three-colour RGB light source, luminescent surface size, wavelength/colour temperature, mounting, input wire length and light-mouth dustproof mirror customization
Specifications
| Model | LS-3COG4040 |
|---|---|
| Voltage | 24 V DC |
| LED type | SMD |
| Wire length | 500 mm (drawing) |
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Quality service | one year product warranty, technical support |
| Light type | High light type |
| Luminous size (mm) | 40x40 |
| Voltage (V) | 24 |
| Power red (W) | 13 |
| Power blue/white (W) | 14.5 |
| Boundary dimension L x W x H (mm) | 95x48x50 |
| Shipping weight | 0.35 kg |
Applications
- Mark point positioning
- Two-dimensional code detection
- Chip, chip breakage detection
- Screen printing positioning
- Scratch detection of metal, glass bottles and other highly reflective surface objects
- Detecting stamped parts
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
