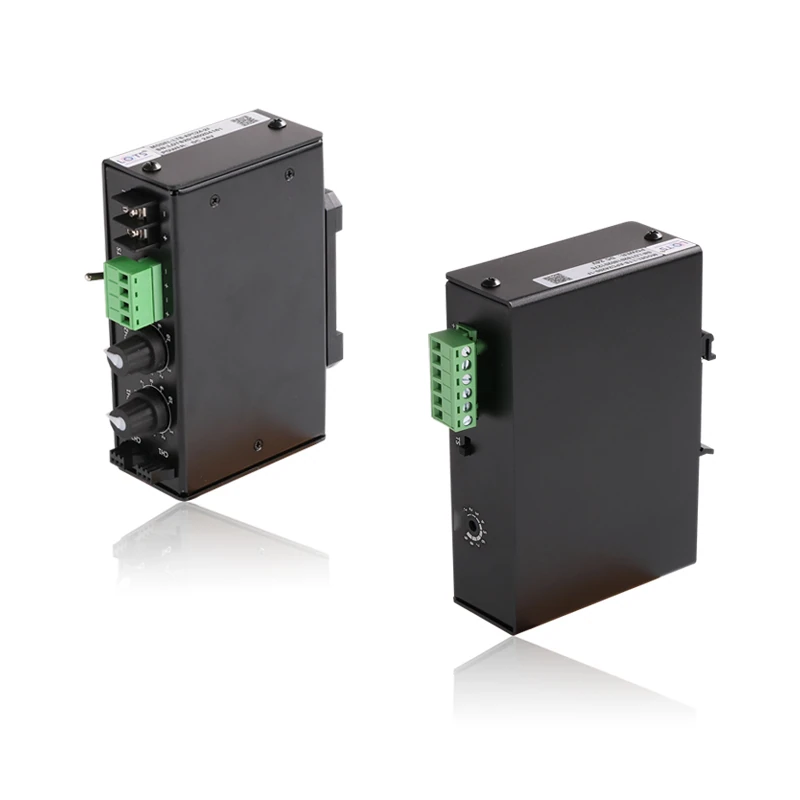

Analog controller box (3APC), 2 ch, 60 W (LS-3APC2460-2F)

Light controllers

Analog controller box (3APC), 2 ch, 60 W (LS-3APC2460-2F)

Model LS-3APC2460-2F

DC24V input. Stepless adjustable output voltage. Compact size.

$119.00 USDIn stock · 5 available

Inventory updated Oct 15, 2026

0.50 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this light → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-3APC2460-2F

Features

  • DC24V input
  • Stepless adjustable output voltage
  • Compact size
  • External trigger

Specifications

ModelLS-3APC2460-2F
External trigger voltage0-1.5V
Luminance adjustment levelStepless (knob adjustment)
Number of channels2 Way
Input voltageDC 24V
Luminance adjustment methodManual adjustment
Luminance adjustment modeConstant current mode
Constant on/off switchSupport
Model as printedLS-3APC2460-2F(New)
ProductAnalog controller box
Output voltage24V
Total output power60W
One way Max.output power30W
ControlManual adjustment
Shipping weight0.50 kg
