Special lights

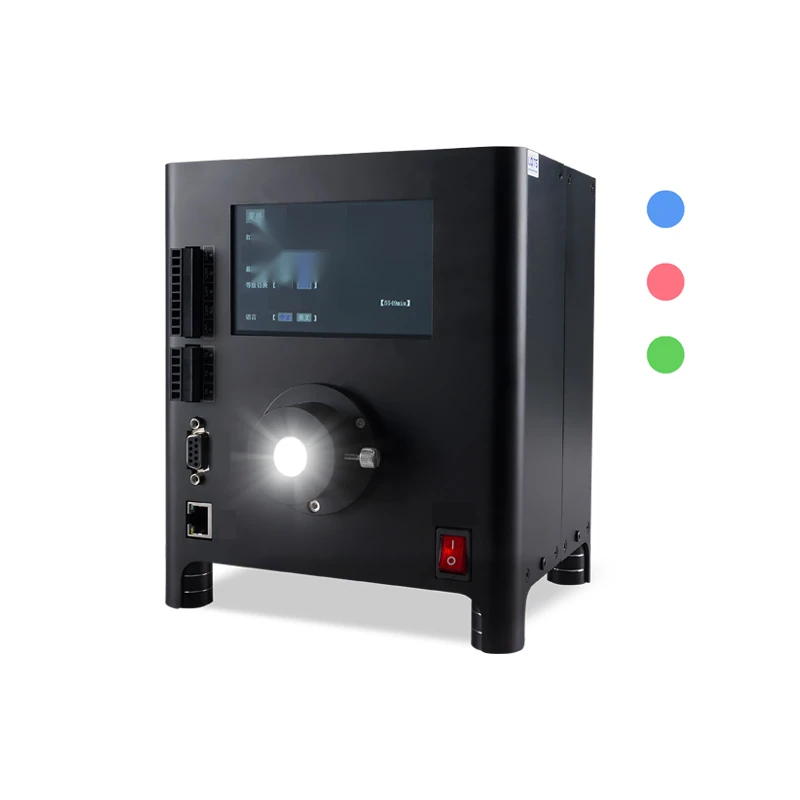

RGB fiber optic light (2SLG-RGB) (LS-2SLG250-RGB)
Model LS-2SLG250-RGB
RGB fiber optic light a single unit can achieve RGB tricolor illumination, separate or mixed color lighting options.Saves space and supports three optical imaging functions.
Features
- A single unit can achieve RGB tricolor illumination, separate or mixed color lighting options
- Saves space and supports three optical imaging functions
- Touch screen LCD display status and setting
- With continuous on /IO trigger function, the brightness is adjustable
- External trigger mode/internal trigger mode
- RS232/LAN communication
- With over current /over temperature/power off protection
Specifications
| Model | LS-2SLG250-RGB |
|---|---|
| Model as printed | LS-2SLG250 |
| Output power | 250W |
| Color | RGB |
| Dimension | L166.9xW172xH203(mm) |
| External trigger voltage | 5-24V |
| Communication method | RS232/LAN communication |
| Baud rate | 19200bps |
| Operating mode | Continuous on mode/trigger mode/ continuous off mode |
| Trigger mode | Follow trigger/Internal trigger mode/External trigger Mode 1 / External trigger Mode 2 Optional |
| Trigger response time | 20us |
| Compatible fiber diameter | Fiber OF diameter dia. 6-14mm |
| Drive mode | Constant current |
| Luminance control level | 256/1024 level option |
| Luminance control method | Touch LCD display/RS232 communication/LAN communication adjustment Optional |
| Language option | The display can be switched between Chinese and Englis |
| Warning function | Overcurrent alarm, overtemperature alarm |
| Input voltage | 100-240VAC |
| Memory protection feature | Over-load protection, over temperature protection, power off saving |
| Insulation and voltage resistance | AC1500V 1 minute cut off current 10mA, DC500V20MΩ or more |
| Operating environment | Temperature : 0 to 40ºChumidity : 20 to 85%RH(Non-condensing) |
| Storage environment | Temperature : 0 to 50ºChumidity : 20 to 85%RH(Non-condensing) |
| Life span | 60,000 hours (until the light intensity is down to 50%) |
| Shipping weight | 0.20 kg |
