Special lights

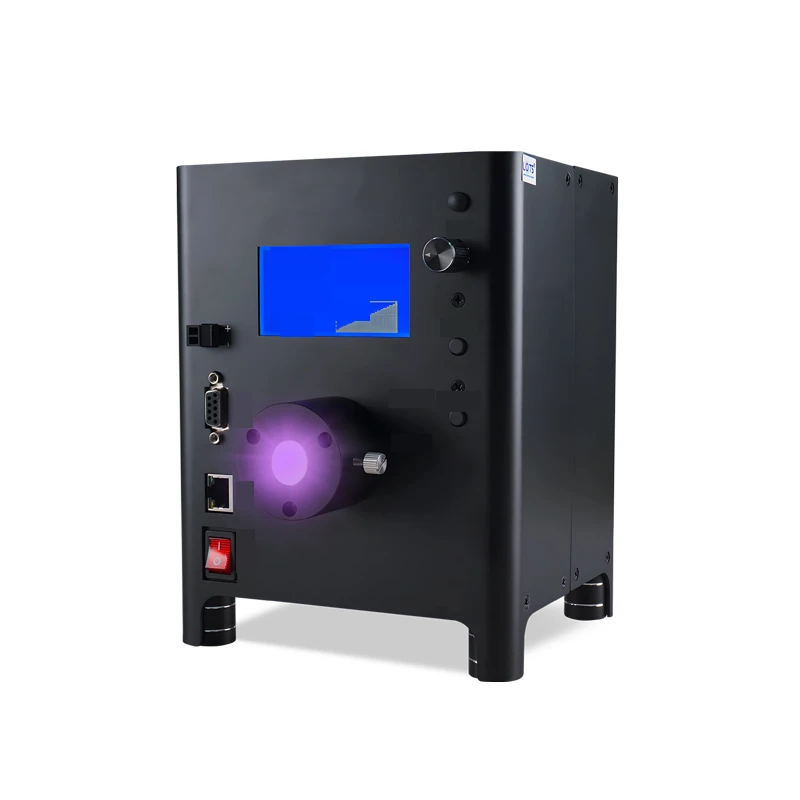

UV fiber optic light (2SLG-UV) (LS-2SLG150-UV)
Model LS-2SLG150-UV
Uv fiber light source has fluorescence effect, biological effect, photochemical effect and photoelectric effect, and has a wide range of applications in various industries.
Features
- Optical Path Design for Efficient Optical Coupling Lens
- Constant-Current Dimming Output with 256/1024 Dimming Levels
- LCD Display for Status and Setting Indication
- IO Trigger Frequency up to 8KHz
- Support for RS232 and LAN Communication
- UV Output at 365/385/395/405nm
- Capable of Inducing Material-Specific Reactions
- Features Overcurrent, Overtemperature, and Power-Failure Protection
Specifications
| Model | LS-2SLG150-UV |
|---|---|
| Output power | 150W |
| Color | UV |
| UVA Wavelength | 365/385/395/405 |
| Dimension | L177xW155xH203(mm) |
| External trigger voltage | 5-24V |
| Compatible fiber diameter | Fiber dia. 6-14mm |
| Input voltage | 100-240V AC |
| Number of channels | 1ch |
| Baud rate | 19200bps |
| Power input frequency range | 50/60Hz |
| External trigger frequency | Determined by external trigger signal; with 50% duty cycle the max. frequency is 8KHz |
| External trigger response time | 20us |
| Power-on response time | ≦6S |
| Protection functions | Over-load protection, over temperature protection, power off saving |
| Communication method | RS232/LAN |
| Operating environment | Temperature: 0 to 40ºC, humidity: 20 to 85%RH (non-condensing) |
| Storage environment | Temperature: 0 to 50ºC, humidity: 20 to 85%RH (non-condensing) |
| Normal on/close switch | Change the initial state through the encoder knob adjustment, continuous on/off mode |
| Fiber option | Recommended quartz material, can be customized |
| Irradiance (UV365, 6 mm light beam) | 3817mW/cm² |
| Luminance control method | Manual encoder knob adjustment, RS232/LAN communication optional |
| Drive mode | Constant current |
| Luminance control level | 256/1024 Level |
| Power-failure memory | Automatic saving of brightness parameters upon power failure |
| Trigger mode | Pulse width trigger, high level 5-24V effective |
| Shipping weight | 0.20 kg |
Applications
- Fluorescent Penetrant Inspection
- UV Curing in PCB Industry
- Medical Applications
- Electronic Chip Production and Inspection
