Special lights

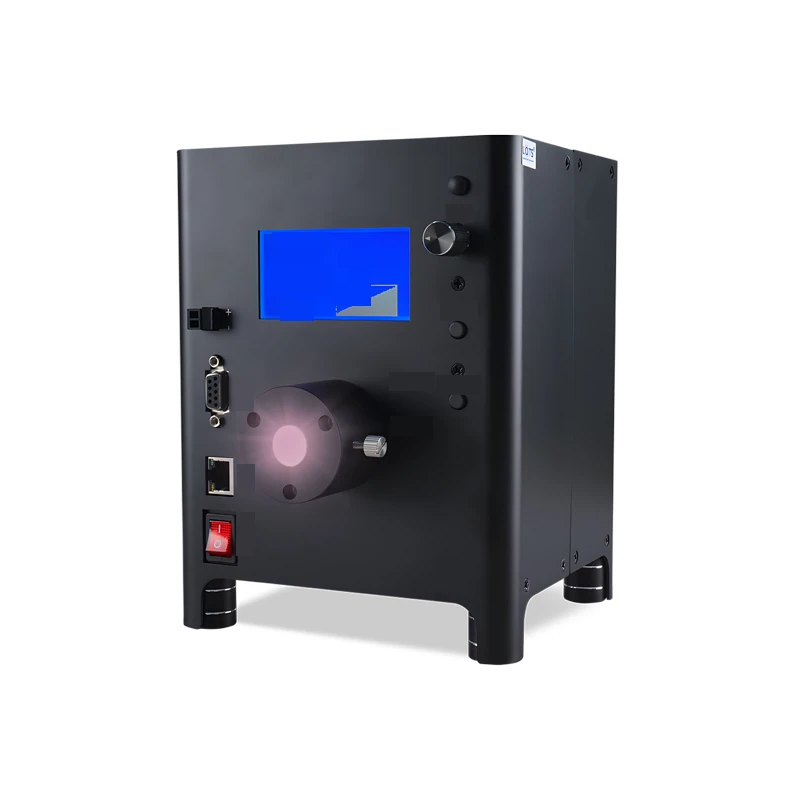

SWIR fiber optic light (2SLG-SWIR) (LS-2SLG150-NIR)
Model LS-2SLG150-NIR
Used for exterior and interior inspection. 9 wavelengths from 810nm to 1650nm are standard. Best for replacing halogen light sources.
Features
- Used for exterior and interior inspection
- 9 wavelengths from 810nm to 1650nm are standard
- Best for replacing halogen light sources
- Due to the LEDs, it helps to long-term use and reduce the thermal damage to the irradiation
Specifications
| Model | LS-2SLG150-NIR |
|---|---|
| Baud rate | 19200bps |
| Communication method | RS232/LAN |
| Compatible fiber diameter | Fiber OF diameter dia. 6-14mm |
| Dimension | L177xW155xH203(mm) |
| Drive mode | Constant current |
| External trigger voltage | 5-24V |
| Input voltage | 100-240V AC |
| Insulation and voltage resistance | AC1500V 1 minute cut off current 10mA, DC500V20MΩ or more |
| Life span | 30000 hours (until the light intensity reaches 50% of the time) |
| Luminance control level | 256/1024 Level |
| Luminance control method | Manual encoder knob adjustment, RS232/LAN communication optional |
| Number of channels | 1 ch |
| Operating environment | Temperature : 0 to 40ºChumidity : 20 to 85%RH(Non-condensing) |
| Protection functions | Over-load protection, over temperature protection, power off saving |
| Storage environment | Temperature : 0 to 50ºChumidity : 20 to 85%RH(Non-condensing) |
| Trigger response time | 20us |
| Model as printed | LS-2SLG150 |
| Type | NIR |
| Wavelength | 810/850/940nm |
| LED Wavelength | 810-940nm |
| Shipping weight | 0.20 kg |
Applications
- Semiconductor wafer and chip crack impurity detection
- Food screening and sorting
- Condition identification of fillers
- Low light night vision to observe objects in the night
