Line scan lights

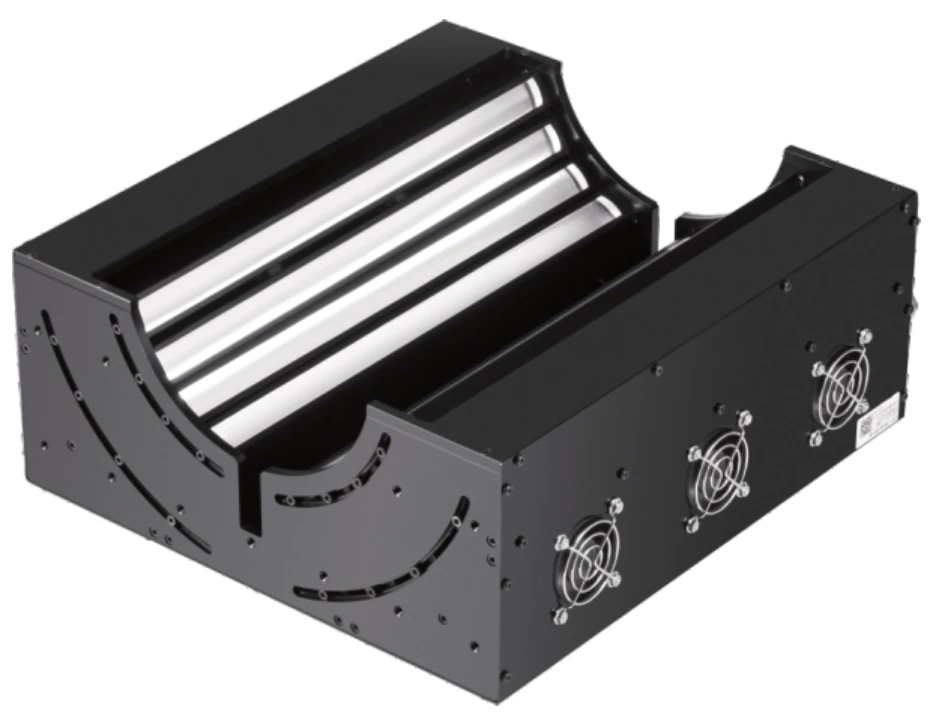

Multi-angle line light, MAS series (LS-2MAS300-W)
Model LS-2MAS300-W
Special optical design with high brightness and anti-reflection; concentrated, highly uniform light. The brightness and number of line lights can be adjusted separately to actual needs.
Features
- Special optical design, high brightness, anti-reflective
- Luminous concentration, high uniformity
- The brightness and quantity of line lights can be adjusted separately according to actual needs
Specifications
| Model | LS-2MAS300-W |
|---|---|
| Storage temperature | 20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Warranty | 1 year free maintenance or replacement for faults not caused by the user |
| Optional accessories | Extension cable |
| Controller | LS-MAS302-W, LS-2MAS236-W (the selected controller should match the power of the light source) |
| Cable | 2 x 500 mm |
| Power (W) | 336 |
| Version | 2MAS |
| View port (mm) | 300 |
| Outer dimensions (mm) | 324 long, 270 wide (front view) / 300 (plan view), 130 high |
| Mounting | 2 x 11 x M5 through (symmetric); 2 x 5 x M3 through (symmetric) |
| Shipping weight | 0.50 kg |
Applications
- Defect inspection of mobile phone glass cover plates
- Mobile phone screen defect inspection
- Backlight module inspection
- Metal surface scratch inspection
- Inspection of products moving at high speed
- Card surface defect inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
