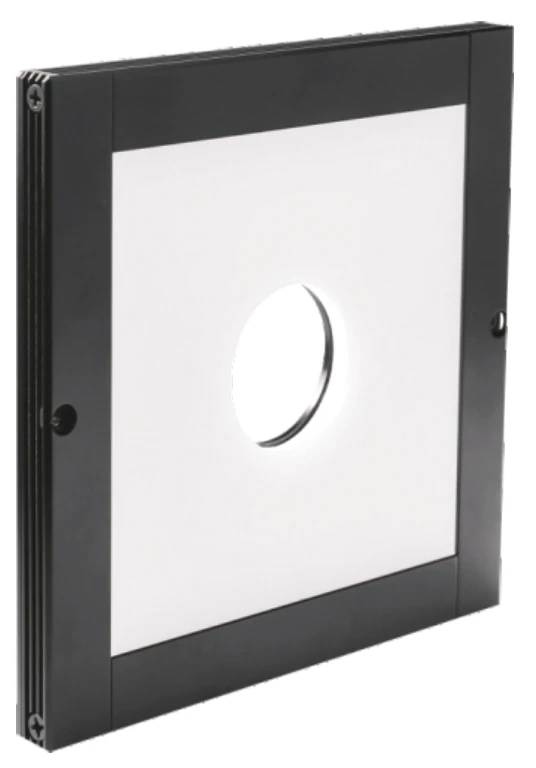

500 x 350 mm Opening side back light source (2KFS) (LS-2KFS500350Y50-R/G/B/W)
Model LS-2KFS500350Y50-R/G/B/W
Ultra-thin side backlight with a hole through the centre; light from several sides gives overall uniformity. Flexible sizes, square or round holes can be opened on request.
Features
- Multilateral lights make the overall uniformity
- Ultra-thin design, can meet different installation space requirements
- Flexible size, convenient customization, wide range of applications (square or round hole can be opened)
- Various installation methods for convenient mounting
Specifications
| Model | LS-2KFS500350Y50-R/G/B/W |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | 20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Warranty | 1 year from shipment (faults not caused by the user: free repair or replacement) |
| Illuminance chart reference | LS-2KFS268168Y35-W; uniformity at LWD 100 mm, FOV 320 x 320 mm |
| Power R (W) | 54 |
| Power G/B/W (W) | 68 |
| Luminous size (mm) | 500 x 350 |
| Overall L (mm) | 532 |
| Overall W (mm) | 382 |
| Overall H (mm) | 10.5 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Opening | Round centre hole, dia. 50 mm |
| Shipping weight | 2.50 kg |
Applications
- Ceramic surface pattern inspection
- Tablet appearance inspection
- Carton positioning
- Compressor surface defect inspection
- Key character recognition of remote controls
- LED substrate inspection
- External contour edge positioning
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
