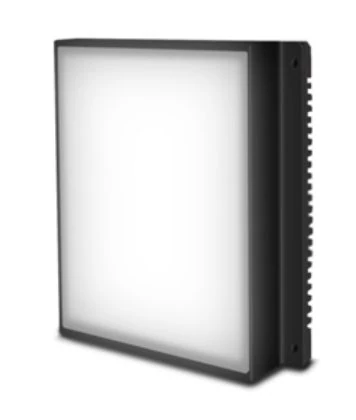

200 x 150 mm Back light (2FL) (LS-2FL200150-Z2)
Model LS-2FL200150-Z2
Back light with surface-mounted LEDs, aluminium alloy housing with black oxide finish and natural air cooling.
Features
- Surface-mounted LED
- Aluminium alloy housing (black oxide finish)
- Natural air cooling
- UV, IR, yellow and other colours can be customized
Specifications
| Model | LS-2FL200150-Z2 |
|---|---|
| Input voltage | DC 24V max. |
| Type | Back light |
| LED model | Surface-mounted LED |
| Color | White |
| Color temperature | 6600k |
| Power | 28.3W |
| Wire length | 0.5m |
| Connector model | SMR-03V-B |
| Connector definition | 1, Positive (+); 2, blank; 3, Negative (-) |
| Shell material | Aluminium alloy (surface black oxide finish) |
| Cooling mode | Natural air cooling |
| Shell hardness parameter | Static load 230N±10N, time 5 minutes, contact area: dia. 30MM; Energy level: 5J, element: steel ball dia. 50MM, 500g±25g |
| Insulating requirement | DC500V insulation resistance >20 MΩ |
| Withstand voltage | AC1000V 10mA/5S |
| Flammability level | IEC60707 |
| Operating temp. & humidity | Temperature: 0 to 50ºC, humidity: 20 to 85%RH (non-condensing) |
| Life span | Using according to the specification, red 50,000 hour, white 30,000 hour, luminance will be reduced to 50% of factory value. |
| Matched power (option) | 1. High power controller; 2. Digital controller; 3. Analog controller |
| Emitting area (mm) | 200 x 150 |
| Outline (mm) | 214 x 164 x 21 |
| Mounting | 4 x M3, depth 4 (reverse side); M3 nut position can be used for installation |
| Cable length (mm) | 500 |
| Shipping weight | 1.00 kg |
