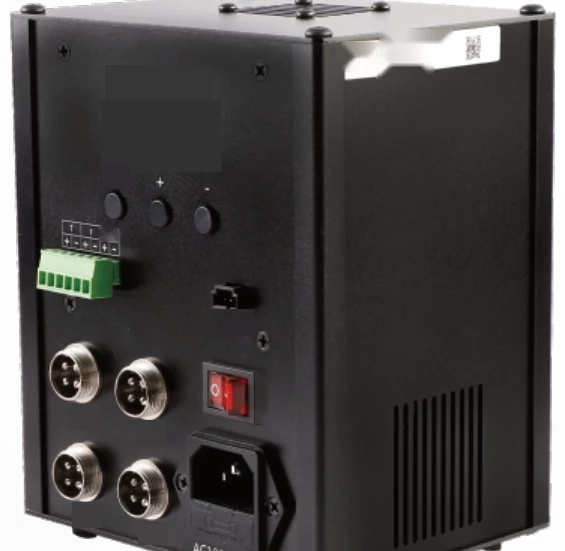

Alternate strobe controller (2DRC), 4 ch, 200 W (LS-2DRC24200-4S)
Model LS-2DRC24200-4S
Alternate strobe controller for line scan lights: channels light up alternately, each channel lighting time 10-68us adjustable, fast shooting speed (theoretical 80K), RS232 control.
Features
- Use with line scan light
- Four channels light up alternately
- Each channel lighting time 10us-68us adjustable
- Fast shooting speed, theoretical speed can reach 80K
- Lighting channel can be optional
- Communication by RS232 and PC
- Power off saving and short-circuit protection
- Rising edge trigger (5-24V); external frame signal input; 5V camera synchronous trigger output, delay < 2.5us
Specifications
| Model | LS-2DRC24200-4S |
|---|---|
| Input voltage | AC 100-240V |
| Input frequency | 50/60Hz |
| Output voltage | 24V |
| Working mode | alternate trigger mode |
| Luminance control method | manual adjust by button, PC remote adjustment |
| Luminance control mode | constant voltage (luminance cannot be adjusted, only lighting time) |
| Lighting time | 10-68us |
| Baud rate | 19200bps |
| Communication | RS232 serial port |
| Trigger signal | rising edge trigger |
| Lighting time delay | <2.5us |
| Channels | 4 |
| One way max. output power | 200W |
| Total output power | 200W |
| External trigger support | Y |
| External trigger voltage | 5-24V rising edge |
| Shipping weight | 1.10 kg |
