Representative photo of this series
Light controllers

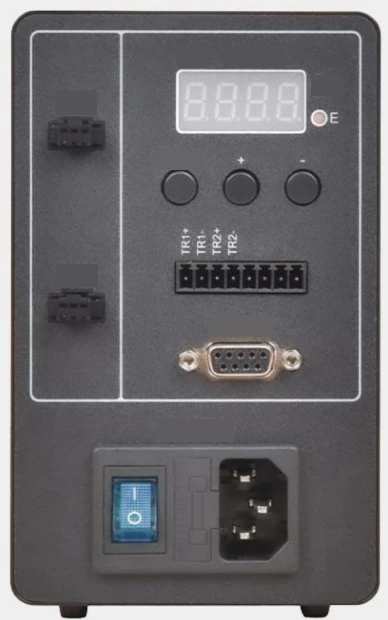

Constant current controller, 2/4 channels, 4 ch, 200 W (LS-200-MI02C-24030-4)
Model LS-200-MI02C-24030-4
Support RS232 communication. Low trigger response time. Support external trigger mode.
Features
- Support RS232 communication
- Low trigger response time
- Support external trigger mode
- Support millisecond strobe and microsecond strobe
- Digital constant current controller, constant current output, no flicker in brightness
- Brightness and mode can be set manually
- 5~24V trigger, adaptable to high and low level trigger modes
- Small size, easy to install, screw mounting or C45 rail mounting
Specifications
| Model | LS-200-MI02C-24030-4 |
|---|---|
| Maximum output current of single channel | 2/3A |
| Maximum input voltage | AC220V |
| Maximum output voltage | 24V |
| Overheat protection | have |
| Working mode | 0: Internal trigger; 1: Always on; 2: Millisecond level flicker; 3: Microsecond level flicker |
| Short circuit protection | no |
| Brightness level | 255 levels |
| Millisecond strobe time | 1~999ms |
| Microsecond strobe time | 1~999us |
| Communication baud rate | 9600-115200bps optional |
| Trigger mode | Edge + level trigger |
| Operating temperature | 5~50°C |
| Luminous mode | Normal light, normal extinction, strobe |
| Driving mode | constant current |
| Dimension | 90×94.6×150mm |
| Built-in power supply power | 200W |
| Number of channels | 4 |
| Connected light source type | 10mA~2/3A 24V power supply |
| Catalog page | P24 |
| Total output (W) | 200 |
| Control | digital (buttons, 4-digit display) / RS232 |
| Shipping weight | 0.65 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Constant current controller, 2/4 channels (MI02C) series
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-65-MI02C-24020-2 | 2 ch, 65 W | 65 W | $149.00 | 2 in stock | View |
| LS-120-MI02C-24030-2 | 2 ch, 120 W | 120 W | $169.00 | 4 in stock | View |
| LS-65-MI02C-24020-4 | 4 ch, 65 W | 65 W | $189.00 | 2 in stock | View |
| LS-120-MI02C-24030-4 | 4 ch, 120 W | 120 W | $209.00 | 5 in stock | View |
