Machine vision lenses

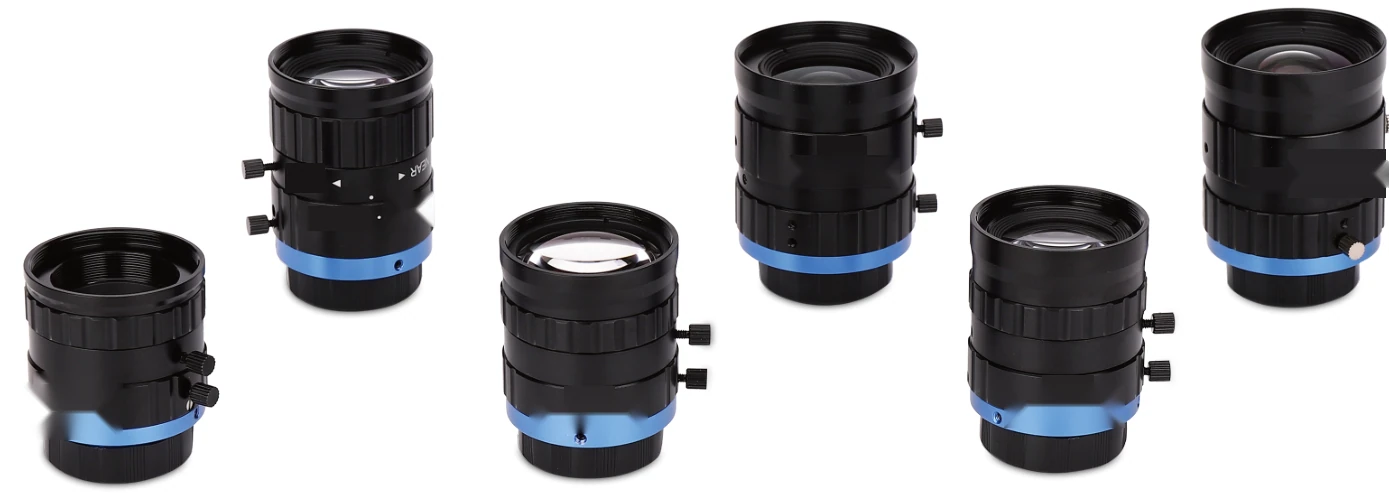

2/3" high resolution 5 MP prime lens, 16 mm, 2/3", C-mount (LS-1616-5MP)
Model LS-1616-5MP
2/3" high resolution 5 million pixel prime lenses with low distortion, large light intake and a short working distance range design.
Features
- 5MP high resolution
- Low distortion
- Large amount of light to get in
- Lenticule design
- Short working distance range design
- Compact structure
- Extensive use in location and inspection industry
- High cost-effective
Specifications
| Model | LS-1616-5MP |
|---|---|
| Format | 2/3" |
| Mount | C |
| Filter size | M35.5 x P0.5 |
| Resolution | 5 MP |
| Focal length (mm) | 16 |
| Aperture | 1.6-16 |
| WD range (mm) | 100-1500 |
| Optical distortion (%) | <0.1 |
| Relative illumination (%) | >70 |
| Target surface | 2/3" |
| Sensor format | 2/3" |
| Working distance (mm) | 100-1500 |
| Shipping weight | 0.38 kg |
Applications
- Automatic optical inspection in electronic industry
- Semiconductor package
- Code reading and recognition
- Printing inspection
- Location system
- AOI inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the 2/3" high resolution 5 MP prime lens series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-0816-5MP | 8 mm, 2/3", C-mount | $79.00 | 2 in stock | View |
| LS-1216-5MP | 12 mm, 2/3", C-mount | $79.00 | 5 in stock | View |
| LS-2516-5MP | 25 mm, 2/3", C-mount | $99.00 | 5 in stock | View |
| LS-3516-5MP | 35 mm, 2/3", C-mount | $109.00 | 5 in stock | View |
| LS-5020-5MP | 50 mm, 2/3", C-mount | $129.00 | 5 in stock | View |
