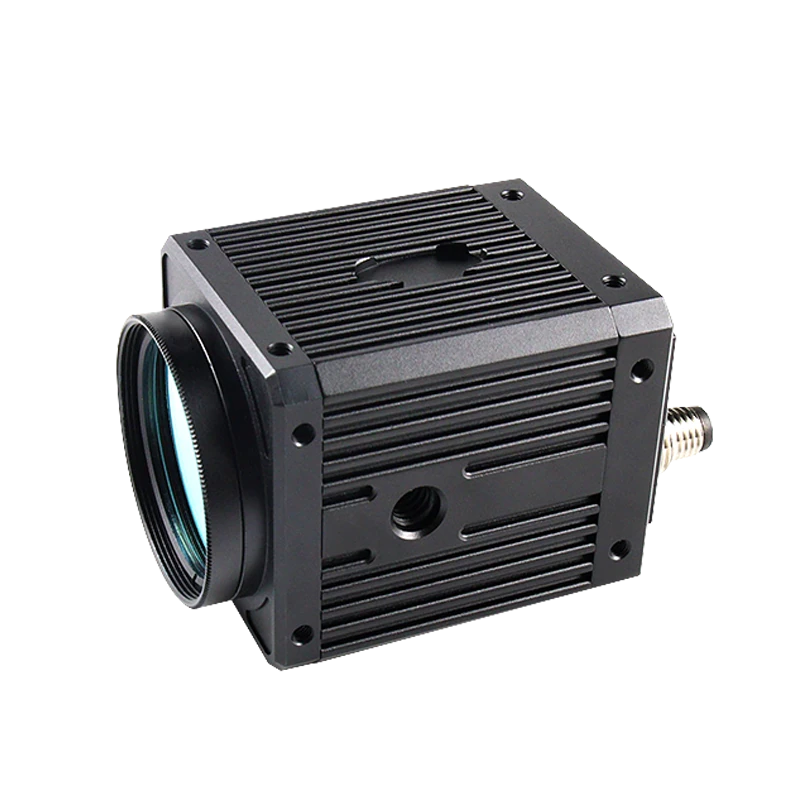

Weld monitoring camera (LS-130), 1.3 MP, Mono/Color (LS-130H-M/C)
Model LS-130H-M/C
Weld monitoring camera is an advanced tool specifically designed for monitoring and controlling the welding process.
Features
- Resolution of 1280x1024@60fps.
- No need fora computer,directly connect the camera to a display screen.
- Plug-and-play functionality,ready to use.
- Uses fiber optic HDMI cables to avoid electromagnetic fields and high-frequency interference.
- Uses wireless image transmission, optional battery power supply, avoid cable clutter, more convenient for robot welding.
Specifications
| Model | LS-130H-M/C |
|---|---|
| Sensor Type | B&W1/2.7CMOS imager |
| Effective Pixels | 1.3MP |
| Max Resolution | 1280x1024 |
| Frame Rate | 60fps |
| Shutter | Global |
| Protocol | Hdmi output |
| Operation System Software | No need for computer |
| Lens | F=25mm(Builded-in) F=42mm(Interchangeable) |
| Working Distance | 160-250mm(F25mm len) 200-450mm(F25mm len) |
| Color | Mono/Color |
| Dimension | 45x45x62mm |
| Product name | Weld Monitoring Camera |
| Sensor | 1/2.7", CMOS |
| Pixel Size | 5.6 * 5.6 μm |
| Feature | No pictures or videos can be stored |
| Operation System Software (product page) | No need for computer,Live broadcast type |
| Lens Mount | C-Mount |
| Working Temperature | 40°C—85°℃ |
| Net Weight | 120g |
| Interface | Hdmi output |
| Mono / colour | Mono/Color |
