Mobile robots

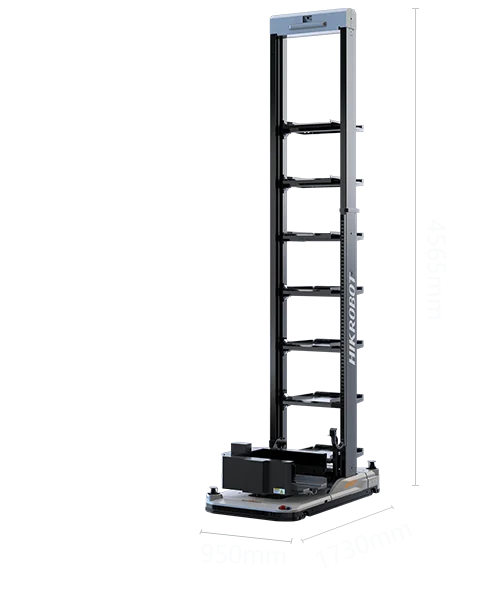

Hikrobot TP5-50DCH Case-Handling Robot (CTU)
Model TP5-50DCH
Hikrobot TP5-50DCH case-handling robot (ctu). Efficient Picking
Specifications
| Model | TP5-50DCH |
|---|---|
| Brand | Hikrobot |
| Rated Load (kg) | 250 |
| Bin Number | 7 |
| Adaptable Tote Dimension (mm) | 600*400*(120~420) |
| Docking Height (mm) | 270~4000 |
| Aisle Width (mm) | 1100 |
| Max. Lifting Speed (mm/s) | 500 |
| Dimension L*W*H (mm) | 1730*950*4565 |
| Weight (with battery) (kg) | 720 |
| Rated Speed (m/s) | 1.8 |
| Positioning Accuracy (mm,°) | ±10,±1 |
| Charging Time (h) | ≤2 |
| Run time (h) | 6~8 |
| Shipping | Freight, quoted with the order |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the CTU mobile robots series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| TP5-50DC | 250 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCP(T) | 50 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCW(T) | 50 kg rated load | Price on request | 5 in stock | View |
| TP6-50SCH | 50 kg rated load | Price on request | 5 in stock | View |
| TP6-50SCP | 50 kg rated load | Price on request | 2 in stock | View |
| TP6-50SCW | 50 kg rated load | Price on request | 4 in stock | View |
| TP6-30SGH | 30 kg rated load | Price on request | 2 in stock | View |
| TP6-30SGP | 30 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCH(D) | 250 kg rated load | Price on request | 3 in stock | View |
| TP5-50DCH(A) | 250 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCW | 250 kg rated load | Price on request | 4 in stock | View |
